JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Model Number:: | Y83-200 | Power (kW): | 30kW |
|---|---|---|---|
| Certificate: | ISO9001:2000/CE | Port: | Shanghai |
| Automatic Grade: | Hand Valve Control | Capacity: | 5 Ton/h |
| High Light: | Three Ram Hydraulic Metal Baler Machine,Hydraulic Metal Baler Machine 30kW,30kW Hydraulic Metal Baler |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000 |
| Model Number | Y83Q-200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details
| Type | Three Ram Forwarder Out Scrap Metal Baling Press/Metal Baler |
|---|

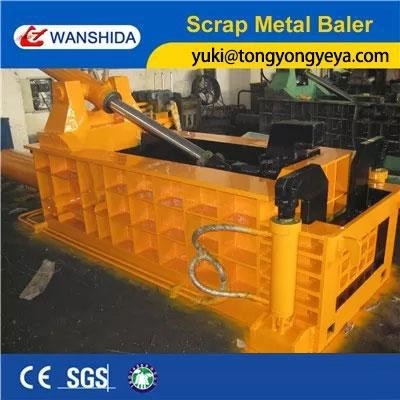

Three Ram Forwarder out Scrap Metal Baling Press/Metal Baler:
Our Y83Q-200 scrap metal baling press pushes the bale out forwardly. It is mainly applied in metal smelting in small and medium scale, as well as waste metal processing and recycling.
Manipulated by hand, this machine specializes in processing the light and thin materials. Its compressed bale is applicable for small processing furnace in the steel plant. The bale is about 700mm high and its length is varied by different quantity of feeding materials.
Technical Parameters:
|
Three Ram Scrap Metal Balers |
|
|
Model |
Y83-200 |
|
Cyliner pushing force |
200 ton |
|
Hydraulic Pressure |
25MPa |
|
Capacity |
5 ton/h |
|
Press room size(L×W×H) |
1800×700×700mm |
|
Bale dimensions(L×W×H) |
700×700mm |
|
Cycle time |
160 sec. |
|
Motor Power |
30kW |
|
Baler dimensions(L×W×H) |
7500×2400×2100mm |
|
Weight |
12000KG |
Features:
1. This forward out baler is driven be hydraulic devices. In the compact structure with rational design, it is small in volume and light in weight. Moreover, it works with small inertia of movement, low noise, stable but flexible operation and other highlights.
2. Our machine utilizes the integrated hydraulic and electrical control. It is easy for use and maintenance.
3. This forward out baler is featured by strong adaptability to diversified working conditions and wide applicable range. It can be used as the machining equipment in the metal recycling unit and for furnace charge in the casting room of factory.
4. Aside from low energy consumption, this product also incorporates such characteristics as easy installation, safe and dependable use, high efficiency, low cost and so on.
Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
Application:
Non Ferrous Metals
coppers
Aluminum Cans
Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans
Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires
