JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Certification: | CE, ISO9001 And ISO14000 | Model Number: | Y83/T-400 |
|---|---|---|---|
| Motor Power: | 110kW | Capacity: | 9tons/h |
| Shearing Force: | 400 Ton | Weight: | 50000(kgs) |
| High Light: | Industrial Baler Machine 400 Ton,400 Ton Scrap Car Baler,Heavy Duty Industrial Baler Machine |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000 |
| Model Number | Y83/T-400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details

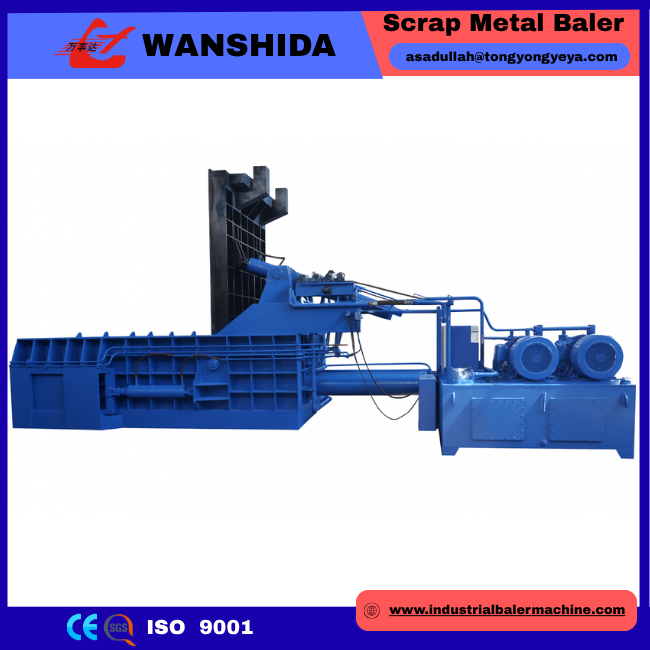

| Type | Scrap Metal Baler |
|---|
The operation method can be hand valve control or PLC automatic control.
Techncial parameters:
|
Model |
Y83/T-400 |
|
Cylinder pushing /shearing force |
400 ton |
|
Maximum working pressure |
25MPa |
|
Capacity |
9tons/h |
|
Compress room size |
3000×2000×1200mm |
|
Bale dimensions (LxWxH) |
(450-800)×550×650mm |
|
Feeding mouth |
2800×1800mm |
|
Bale weight |
400-800kg |
|
Theoretical dry cicle time |
160 sec. |
|
Max. thickness can be press |
9mm |
|
Motor |
110kW |
|
Baler dimensions (LxWxH) |
11800×6760×6700mm |
|
Weight |
50000(kgs) |
Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.
Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
Applications
Non Ferrous Metals
Coppers
Aluminum Cans
Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans
Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires
Waste scrap car
