JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Model:: | Q43-2500 | Cutting Force: | 2500Kn |
|---|---|---|---|
| Voltage: | Customized | Color: | Customized |
| Warranty: | 1 Year | Weight: | 9500Kgs |
| High Light: | 18.5kw Scrap Metal Shear,1000mm Scrap Metal Processing Equipmen,Scrap Metal Shear 1000mm |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000. |
| Model Number | Q43-2500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details
| Type | Metal Cutting Machine/hydraulic Scrap Metal Shears |
|---|

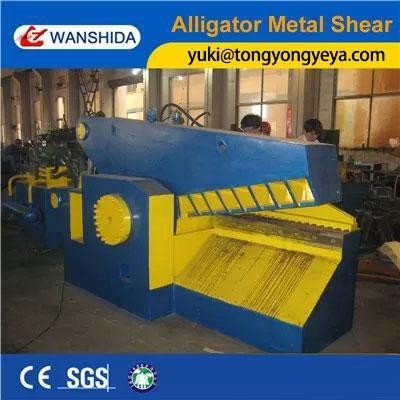

The Q43-2500 alligator shear is metal cutting machine. It used to get qualified furnace charge through cutting diverse scrap shaped steel section and structural metals at cold state like round steel, square steel, angle iron, I steel, steel plate and pipe, etc. It is commonly seen in the medium sized metal processing plant, steel works, scrap metal recycling site and so on. If there is no power at site, this product can be activated by diesel engine according to the demands of users.
Technical Parameters:
|
Model |
Q43-2500 |
|
Cutting Force |
2500Kn |
|
Press Scrap Force |
260Kn |
|
Length Of Blade |
1000Mm |
|
Jaw Size |
285Mm |
|
Motor Power |
18.5 Kw x 2sets |
|
Cycle Time |
Sec |
|
Dimensions |
2650×1024×1880mm |
|
Weight |
9500Kgs |
|
Scrap Be cutted |
Size of scrap be cutted |
|
Round Steel |
70mm |
|
Square Steel |
63×63mm |
|
Angle Steel |
160×160×12mm |
|
Channel Steel |
280×124×11.5mm |
|
Steel Plate |
40×300mm |
The major strong points of the alligator shear are balanced and steady transmission, stable running speed against load change. Controlled by buttons, the machine is able to accomplish the automatic cutting and manual feeding. Highly praised by customers from Russia and Ukraine, this product has been sold nearly 300pcs to these customers in the past two years.
This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.
Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
