JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Model:: | Q43-2000 | Cutting Force: | 2000Kn |
|---|---|---|---|
| Voltage: | Customized | Color: | Customized |
| Warranty: | 1 Year | Motor Power: | 30Kw |
| Length Of Blade: | 800mm | ||
| High Light: | 30kW Scrap Metal Shear,Scrap Metal Shear 2000Kn,2000Kn Hydraulic Shearing Machine |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000. |
| Model Number | Q43-2000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details
| Type | China Metal Shear Supplier |
|---|
We are China Metal Shear supplier-Wanshida Hydraulic Machinery specialized in produce all kinds of Waste Metal Recycling equipment on balers , Metal shears, Scrap Briquetting Press, etc.

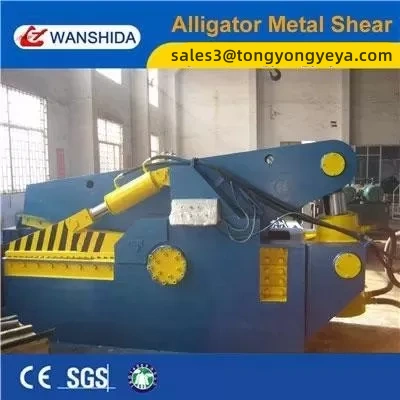

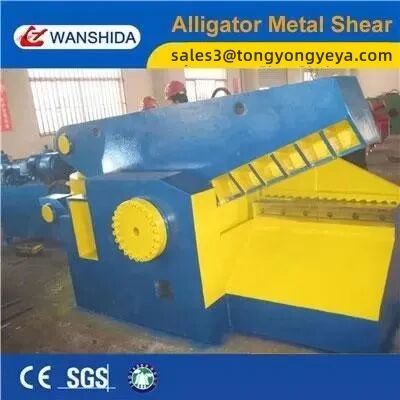

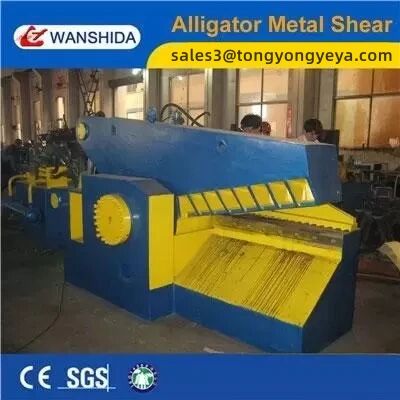

This Q43 - 2000 Alligator metal shear is commonly applied in the small and medium scaled scrap metal recycling place, steel plant, metal processing factory and other places. The opening of the shear blade is about 800mm and its maximum cutting force reaches 200ton. The upmost clamping force is up to 25ton. At the site without power source, the diesel engine can offer power for the machine as required.
Our alligator shear has incorporated a series of features like small inertia, high efficiency, ease of operation and so on. It is operated by buttons for automatic cutting with manual feeding.
Technical Parameters:
|
Model |
Q43-2000 |
|
Cutting Force |
2000Kn |
|
Press Scrap Force |
80Kn |
|
Length Of Blade |
800Mm |
|
Jaw Size |
285Mm |
|
Motor Power |
30 Kw |
|
Cycle Time |
Sec |
|
Dimensions |
mm |
|
Weight |
Kgs |
|
Scrap Be cutted |
Size of scrap be cutted |
|
Round Steel |
63mm |
|
Square Steel |
55×55mm |
|
Angle Steel |
140×140×10mm |
|
Channel Steel |
280×82×7.5mm |
|
Steel Plate |
25×400mm |
This Q43 series alligator shear is mostly applied in the metal recycled processing plant, disassembling field of scraped vehicles, smelting and casting fields and other industries. It is able to process the steel section in different shape and diversified waste structural metal like round steel, square steel, angle iron, I steel, plate steel and steel pipe into the qualified furnace charge through cold cutting. Added with appropriate devices, our product can work as the length shearing equipment for small sized steel section in rolling mill.
Construction
In the standard structure of the alligator shear, the mainframe and the hydraulic station are separated. Therein, the main frame is composed of cutting blade holder, blade moving bracket driven by shearing cylinder, holding plate driven by holding cylinder, adjusting device and so on. As for the small nonstandard machine, the mainframe and the hydraulic can be integrated together as customers require. Moreover, the clamping cylinder can be removed depending on the cutting conditions.
