JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Model:: | Y82W-50A | Weight:: | 8.5ton |
|---|---|---|---|
| Motor Power:: | 20Kw | Bale Size1 Set: | 600×600×1000 |
| Press Force: | 50T | Dimensions: | 7000*2000*1980mm |
| High Light: | 8.5 Ton Horizontal Baler Machine,Horizontal Baler Machine 1 Set,1 Set Waste Cardboard Balers |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000. |
| Model Number | Y82W-50A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details
We are China Waste Cardboard Balers manufacturer-Wanshida Hydraulic Machinery.
Description:

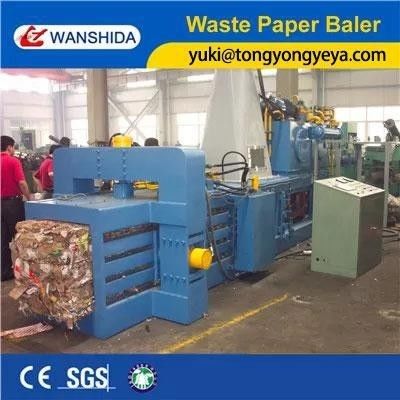

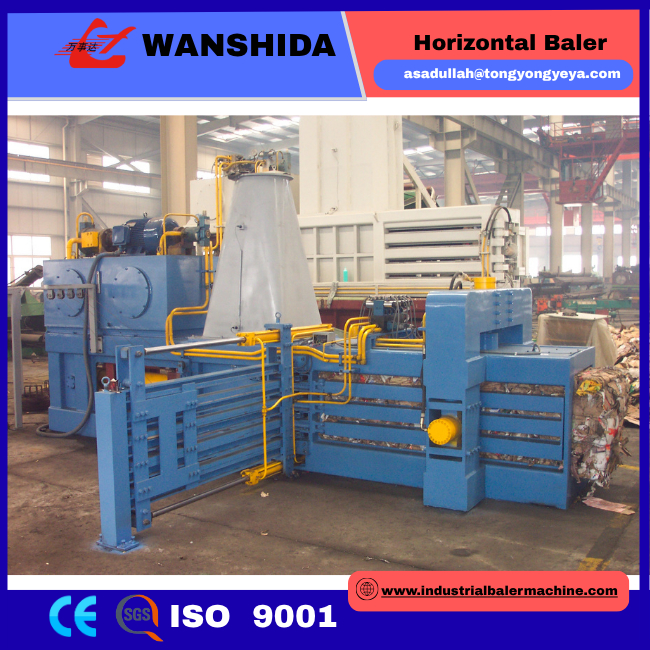

This Y82W-50A automatic waste paper baler is commonly applied in baling loose materials, such as scrap paper, waste carton, news paper, waste plastic, PET bottles, plastic film and recycle case, straws, etc.
Technical Parameters:
|
Model |
Y82W-50A |
|
Bale weight |
450kg |
|
Bale size (W×H×L) |
600×600×1000 |
|
Press force |
50T |
|
Output capacity |
2-4T |
|
Motor power |
20kw |
|
Strapping wire |
4 wires |
|
Dimensions |
7000*2000*1980mm |
|
Weight |
8.5ton |
Features
1. Controlled by PLC system, this baler is equipped with the touch screen for window monitoring, error warning with synchronous indicator diagram, bale length setting and other operations.
2. The design of floating clamping device on the upper, left and right directions facilitates the automatic distribution of four sided pressure. It makes the machine capable of baling a wide range of materials.
3. Equipped with 6m long conveyor belt, this automatic waste paper baler is able to load and feed materials automatically. Moreover, it supports automatic binding performance, improving the baling speed.
4. The pushing cylinder and the bale ejector are connected reliably in spherical structure, prolonging the longevity of oil seal.
5. There are several shear blades distributed at the feeding inlet increasing the cutting efficiency.
6. Our automatic waste paper baler adopts the hydraulic circuit design with low noise to increase the working efficiency and decrease the failure rate.
7. It can be easily mounted without any foundation.
8. The specific dimensional design of the compress room and the bale is available as required.
Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
Applications
OCC
Carton
Cardboard
Dry Soft Plastic
PET Bottles
Plastic film
White Goods
Shred paper
News Paper
Scrap Tire
HDPE Jars
