JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Model Number: | Q43-800 | Blede Length:: | 800mm |
|---|---|---|---|
| Hydraulic System Pressure: | 21MPa | Voltage: | Customized |
| Color: | Customized | Warranty: | 1 Year |
| High Light: | 7.5kW Scrap Metal Shear,1600mm Steel Scrap Shredder Machine,Scrap Metal Shear 1600mm |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000. |
| Model Number | Q43-800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details
| Type | Guarding Hydrauic Alligator Shear |
|---|

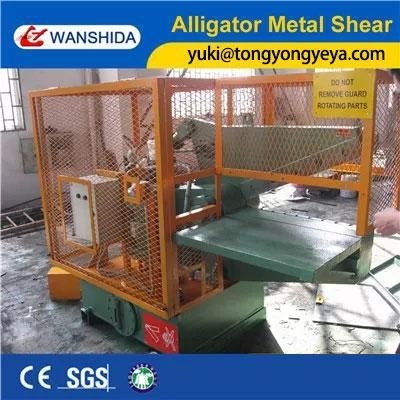

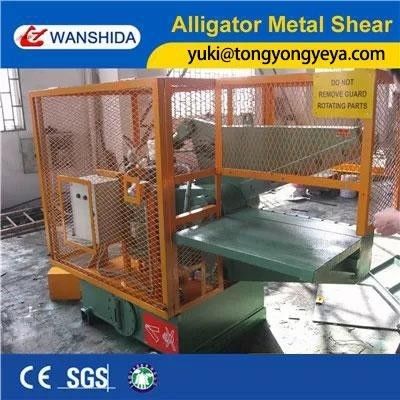

Guarding hydrauic alligator shear:
This Q43-800 guarding hydrauic alligator shear is mainly applicable for metal processing plant and scrap metal recycling station in small scale. Equipped with the 800mm long cutting blade, it performs with large shearing force. Driven by hydraulic device, this machine offers secure performance and simple operation. Moreover, it is available in mounting without foot screws. If there is no power supply at the working site, this product can be powered by the diesel engine, saving both time and labor.
The advantage of this alligator shear is that all the weld joints are treated with fusion welding in the entire production process. The configured bolts meet higher strength standards than other similar products. This machine is able to shear about 3 to 5 tons of materials per shift. According to the demands of customers, this main frame and the hydraulic unit are integrated into all in one machine. Therefore, this product is space saving and convenient for transportation and operation. Moreover information about this product can be obtained through contacting our sales group.
Technical Parameters:
|
NO |
Q43-800 Guarding hydrauic alligator shear -- Technical Specifications |
||
|
1 |
Largest shear force(ton) |
800KN |
|
|
2 |
Stroke of cut cylinder |
240mm |
|
|
3 |
Height of working table |
790mm |
|
|
4 |
frequency per minute(times) |
8～12 |
|
|
5 |
Blede length |
800mm |
|
|
6 |
Largest Blade Opening |
340mm |
|
|
7 |
Hydraulic system pressure |
21MPa |
|
|
8 |
Total power |
7.5kW |
|
|
9 |
Electromotor |
Type Y132M-4 |
QTY 1 piece |
|
Rated speed 1440rpm |
Power 7.5kW/10HP |
||
|
10 |
Hydraulic pump |
Type 25YCY14-1B |
QTY 1 piece |
|
Nominal discharge 25ml/r |
Nominal pressure 31.5MPa |
||
|
11 |
Overall size of machine |
2200×900×1600 mm |
|
