| Place of Origin: | China |
|---|---|
| Brand Name: | Wanshida |
| Certification: | ISO9001,CE |
| Model Number: | Q43L-5000B |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiation |
| Packaging Details: | Sea worthy |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10sets/month |
| Model: | Q43L-5000B | Shearing Opening: | 500–720 Mm |
|---|---|---|---|
| Shearing Frequency: | 3–4 Cycles/min, Theoretical | Total Shearing Force: | 500 Tons |
| Control Mode: | Automatic Control | Charging Chamber: | 6,000 × 1,350 × 750 Mm |
| Blade Width: | 1,400 Mm | Total Motor: | 80KW |
| Highlight: | Hydraulic Gantry Shear,Advanced Gantry Shear,Heavy Duty Gantry Shear |
||

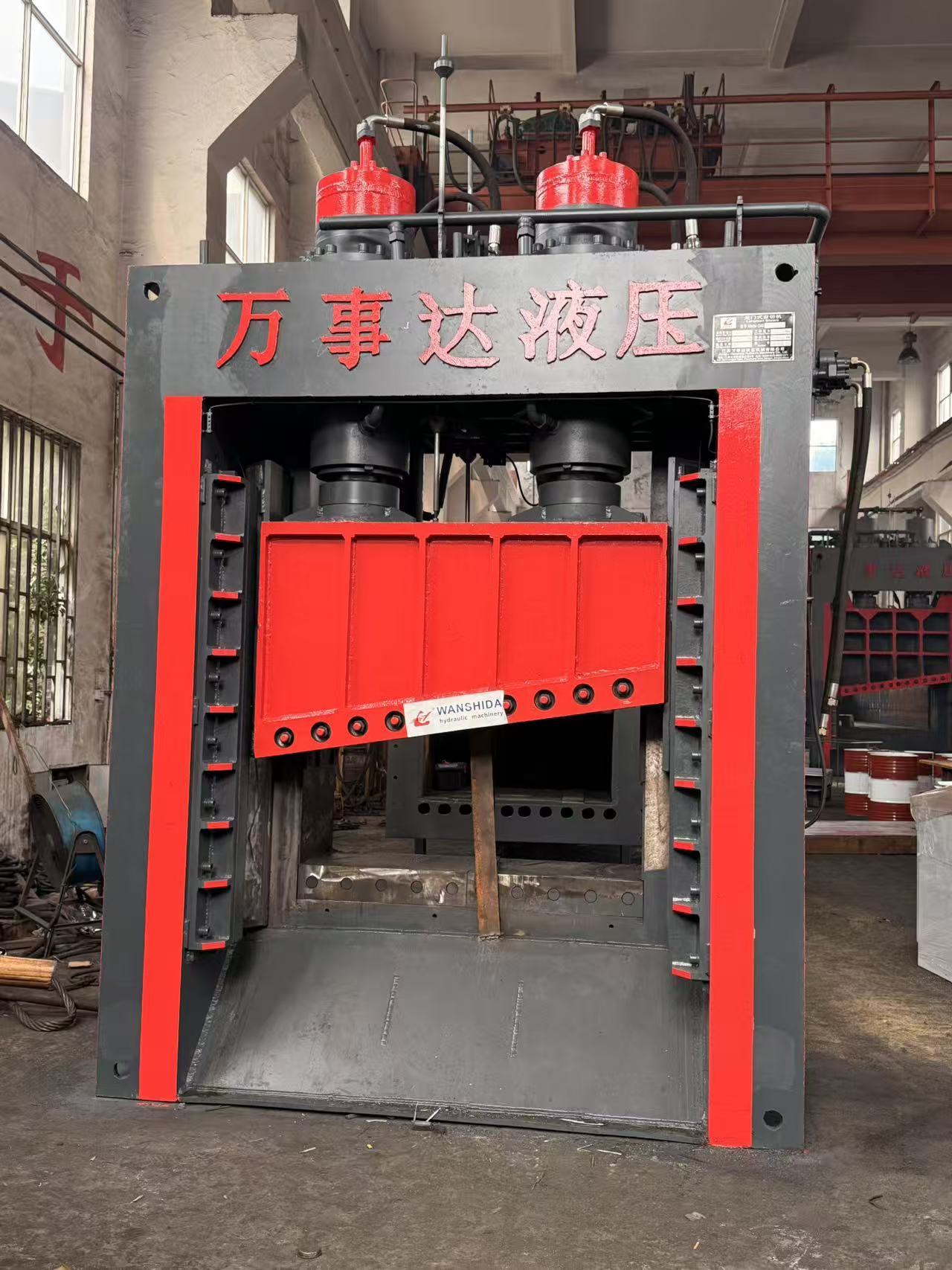

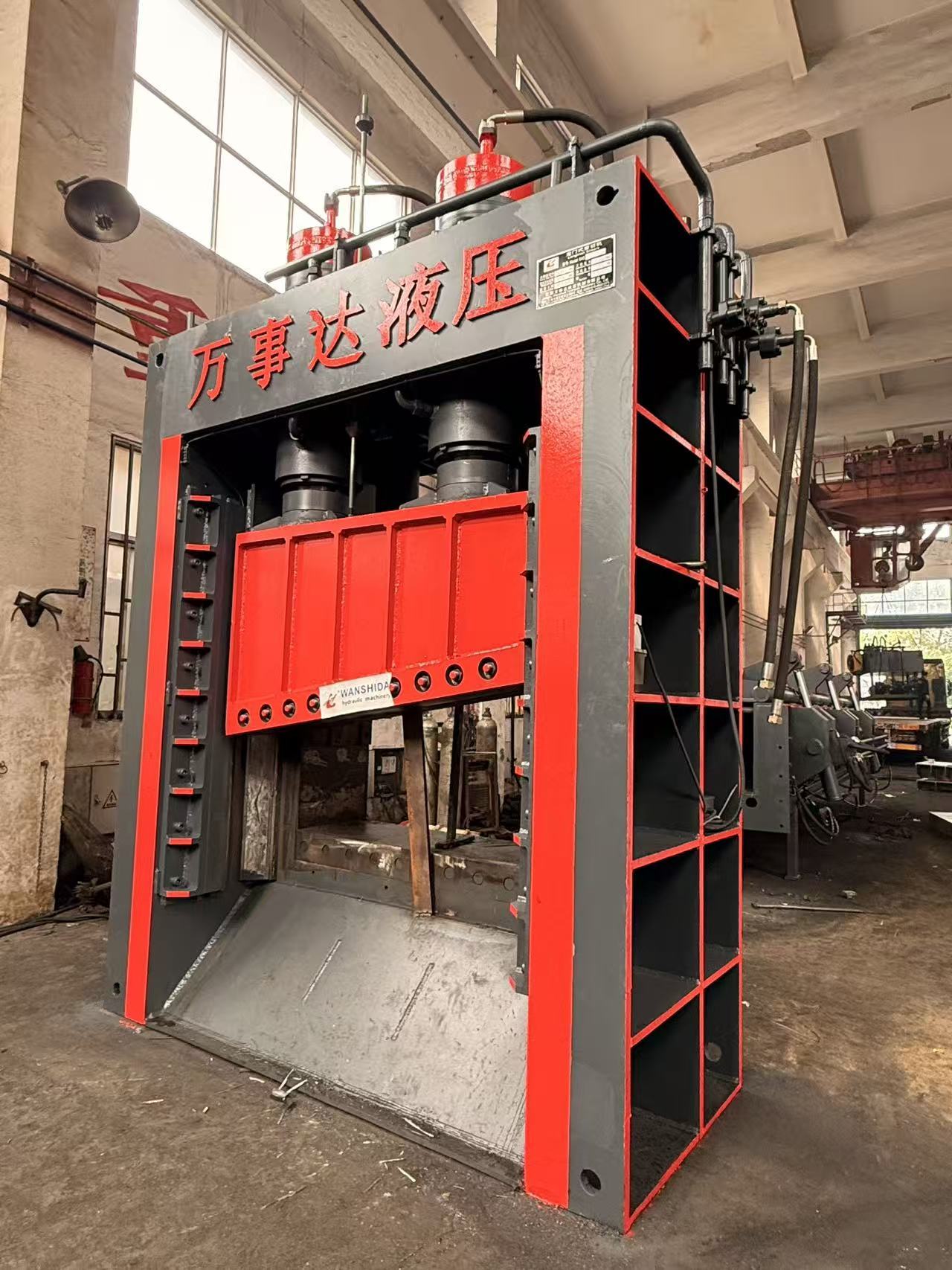

The Q43L-5000B diesel-powered gantry shear is a heavy-duty scrap metal processing machine designed for cutting long, bulky, and irregular metal into compact furnace-ready pieces. With a total shearing force of 500 tons, a 1,400 mm wide blade, and a large 6,000 × 1,350 × 750 mm charging chamber, it is suitable for high-volume scrap yards, steel mills, recycling centers, and dismantling operations.
Unlike stationary scrap shears that depend entirely on an external electrical supply, the Q43L-5000B is powered by an 80 kW diesel engine. This independent power system makes the machine especially practical for remote recycling sites, temporary processing yards, ports, and locations where the electricity supply is limited or unstable.
The automatic control system coordinates material feeding, compression, and shearing. Adjustable pushing speed helps operators handle different types of scrap efficiently while maintaining a stable production rhythm.
Long steel profiles, pipes, plates, and structural scrap are difficult to transport, store, and feed directly into a melting furnace. Processing these materials with manual cutting equipment can result in high labor costs, inconsistent cutting sizes, and lower workplace safety.
Scrap recyclers may also face several operational challenges:
The Q43L-5000B combines hydraulic feeding, material compression, and powerful shearing in one integrated system. Scrap is loaded into the long charging chamber and pushed toward the cutting area by a hydraulic pusher cylinder. Two pressing cylinders secure and compact the material before the twin shearing cylinders complete the cutting stroke.
Its 500-ton shearing force allows the machine to process common carbon steel scrap such as round bars, square bars, steel plates, pipes, and light structural sections. The diesel-powered design reduces dependence on factory electrical infrastructure, while automatic control helps improve productivity and operating consistency.
Key advantages include:
| Item | Specification |
|---|---|
| Model | Q43L-5000B |
| Total Shearing Force | 500 tons |
| Charging Chamber | 6,000 × 1,350 × 750 mm |
| Blade Width | 1,400 mm |
| Shearing Opening | 500–720 mm |
| Shearing Frequency | 3–4 cycles/min, theoretical |
| Maximum Round Bar | Ø100 mm ordinary steel |
| Maximum Square Bar | 90 × 90 mm ordinary steel |
| Maximum Q235 Steel Plate | 45 × 1,200 mm |
| Control Mode | Automatic control |
| Diesel Engine | 80 kW |
| Oil Tank Capacity | Not less than 2,400 L |
| Overall Dimensions | Approx. 14,400 × 2,650 × 3,750 mm |
Cutting capacity may vary depending on the material grade, shape, feeding arrangement, and actual operating conditions.
The Q43L-5000B hydraulic gantry shear can be used for:
Scrap material is loaded into the charging chamber by a crane or material handler. The hydraulic pusher moves the scrap toward the shear head at an adjustable speed. Pressing cylinders then hold and compress the material to prevent movement during cutting.
Once the material reaches the preset cutting position, the shearing cylinders drive the blade downward. The processed scrap is discharged in shorter, more manageable pieces. The automatic cycle then repeats, reducing repetitive manual operation and helping maintain stable output.
When selecting a scrap gantry shear, buyers should consider the type, thickness, length, and hardness of the material rather than focusing only on the nominal shearing force.
The Q43L-5000B is recommended when:
For unusually hard alloy steel or oversized solid material, samples or detailed material dimensions should be provided before confirming the configuration.
It is designed for ordinary carbon steel scrap, including pipes, round bars, square bars, plates, profiles, and light structural steel. Alloy steel and high-strength material require separate technical confirmation.
Actual throughput depends on scrap density, material size, operator loading efficiency, required cutting length, and material hardness. The machine’s theoretical shearing frequency is 3–4 cycles per minute.
The main hydraulic system is powered by an 80 kW diesel engine. A 24 V battery supply supports the machine’s electrical control system.
Yes. The chamber dimensions, feeding arrangement, control functions, safety protection, and other details can be adjusted according to the buyer’s material and operating requirements.
Yes. Installation guidance, commissioning support, operating manuals, and operator training can be provided according to the project location and service requirements.
