| Place of Origin: | China |
|---|---|
| Brand Name: | Wanshida |
| Certification: | CE, ISO9001 |
| Model Number: | Q43-630 |
| Minimum Order Quantity: | 1SET |
| Price: | Contact us |
| Packaging Details: | Sea worthy |
| Delivery Time: | 30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30sets/month |
| Largest Shear Force(ton): | 630KN | Stroke Of Cut Cylinder: | 210mm |
|---|---|---|---|
| Guarantee: | 1 Year | Cutting Blade: | 600mm |
| Scrap Size: | 30×40 Φ35 | Largest Blade Opening: | 280mm |
| Hydraulic System Pressure: | 21MPa | Power: | 7.5kW |
| Highlight: | 5000kg/H Industrial Baler Machine,Metal Industrial Baler Machine,Automatic Industrial Baler Machine |
||

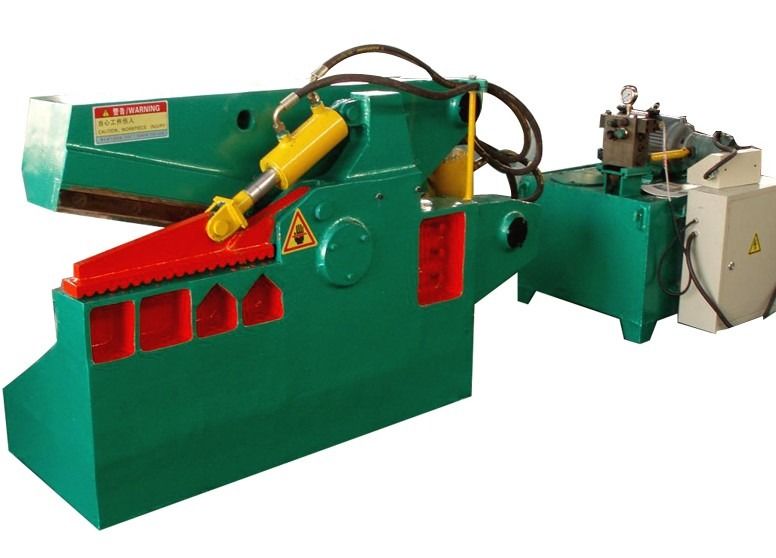

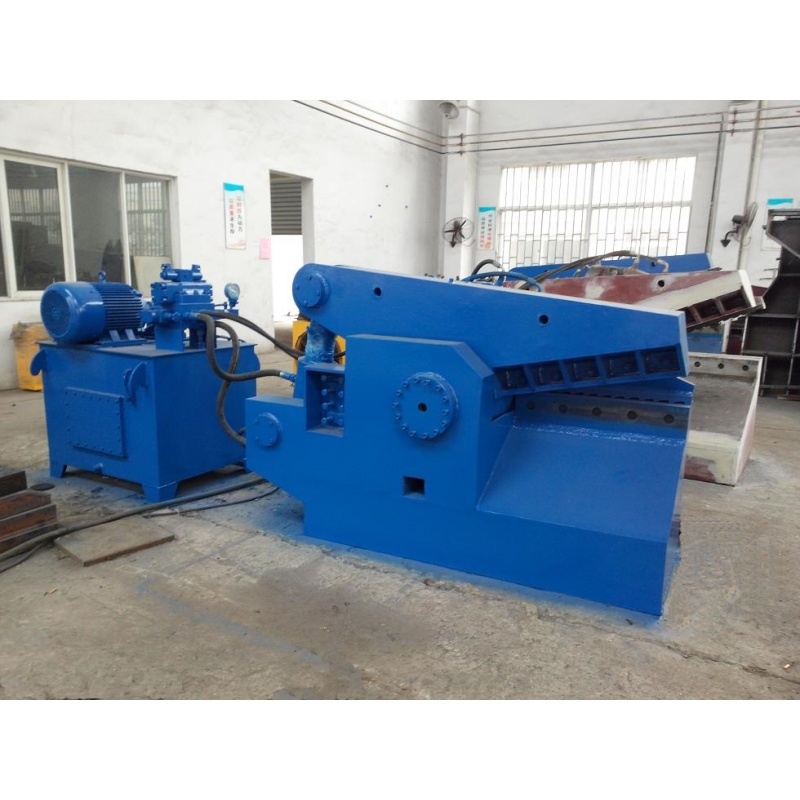

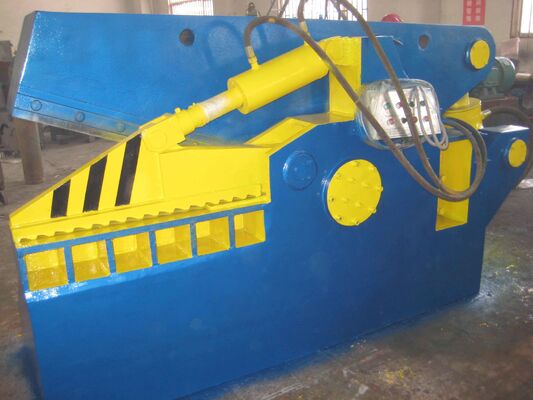

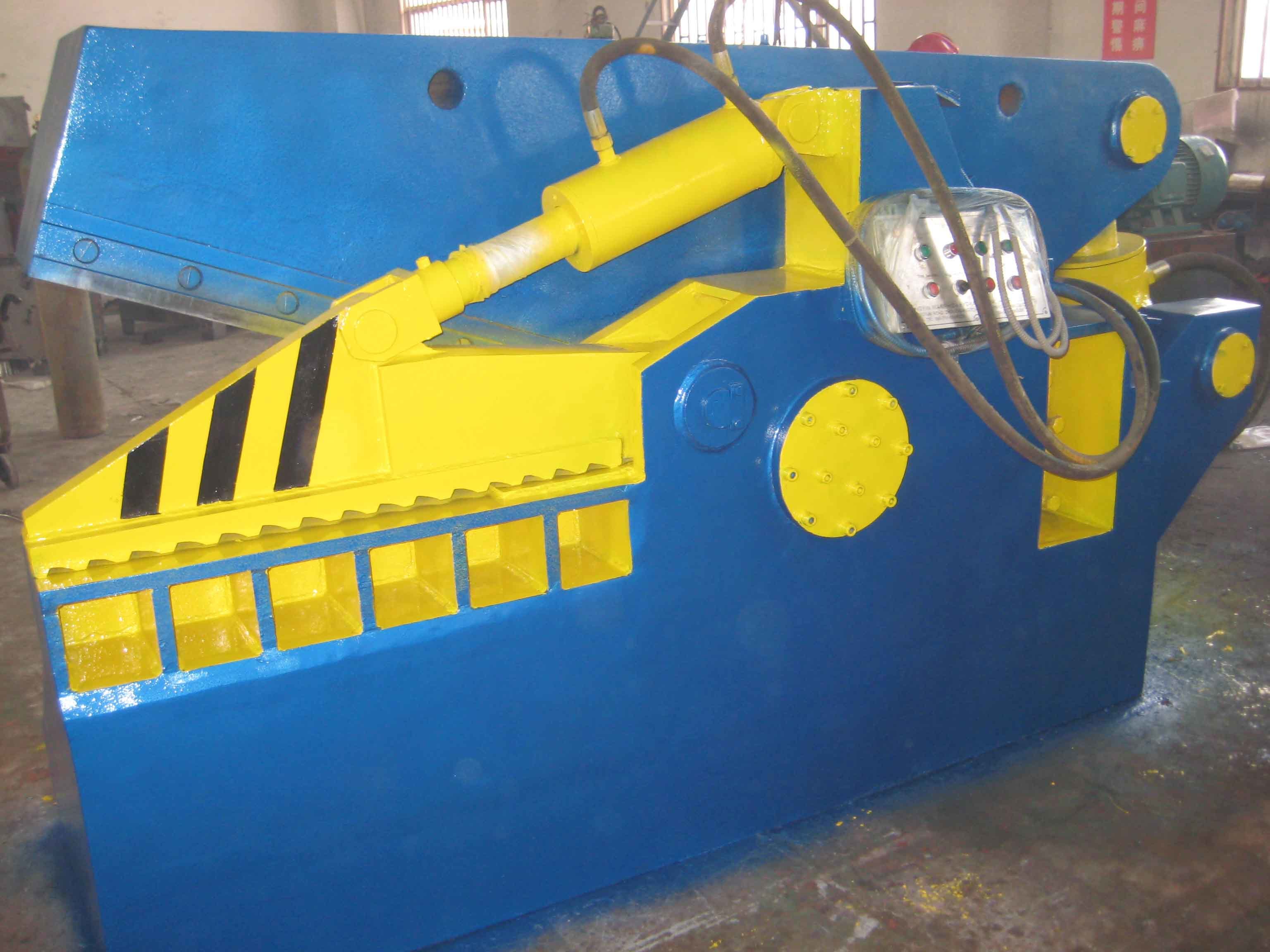

The Q43-630 hydraulic metal shear is a compact and practical scrap cutting machine developed for recycling yards, fabrication workshops, foundries and small metal processing facilities. It provides a maximum shearing force of 630 kN and can process square steel up to 30 × 40 mm and round steel up to Φ35 mm, subject to the material grade and tensile strength.
Equipped with a 600 mm shear blade and a maximum blade opening of 280 mm, the machine can accommodate various metal shapes, including bars, pipes, flat steel, angle steel and production offcuts. Its cutting frequency of 8–12 times per minute helps buyers process everyday scrap efficiently without investing in a large, high-power shearing system.
A 7.5 kW motor and hydraulic drive system provide a good balance between cutting performance, energy consumption and operating cost. The compact structure also makes the Q43-630 suitable for businesses with limited workshop space.
Long and irregular metal scrap creates several practical problems during recycling and production:
For facilities handling small and medium-sized scrap, using an oversized industrial shear may result in unnecessary equipment and electricity costs.
The Q43-630 scrap metal shear reduces long and bulky materials into shorter, more manageable pieces through hydraulic cutting. Its 630 kN shearing force is designed for common light and medium-duty scrap, while the 210 mm cylinder stroke provides a stable cutting movement.
The 600 mm blade offers enough working width to handle individual profiles or several smaller pieces, depending on their shape and strength. A cutting speed of 8–12 cycles per minute supports continuous daily operation while giving the operator sufficient time to position irregular materials safely.
Key benefits include:
| No. | Technical Item | Specification |
|---|---|---|
| 1 | Model | Q43-630 Hydraulic Metal Shear |
| 2 | Maximum Shearing Force | 630 kN |
| 3 | Oil Cylinder Stroke | 210 mm |
| 4 | Cutting Frequency | 8–12 times/min |
| 5 | Shear Blade Length | 600 mm |
| 6 | Maximum Scrap Size | 30 × 40 mm / Φ35 mm |
| 7 | Maximum Blade Opening | 280 mm |
| 8 | Hydraulic System Pressure | 21 MPa |
| 9 | Motor Type | Y132M-4 |
| 10 | Motor Quantity | 1 piece |
| 11 | Rated Motor Speed | 1440 rpm |
| 12 | Motor Power | 7.5 kW |
| 13 | Hydraulic Pump Type | 25YCY14-1B |
| 14 | Hydraulic Pump Quantity | 1 piece |
| 15 | Nominal Pump Displacement | 25 ml/r |
| 16 | Nominal Pump Pressure | 31.5 MPa |
Actual cutting capacity depends on the material grade, tensile strength, cross-sectional shape, blade condition and feeding position.
The Q43-630 hydraulic scrap shear is suitable for cutting:
It can be used in scrap yards, small foundries, metal workshops, machine factories, demolition recycling stations and metal trading businesses.
The operator places the material in the cutting area and positions it beneath the blade. After the cutting command is activated, the hydraulic pump supplies pressurized oil to the cylinder. The cylinder drives the upper blade downward, applying concentrated force to cut the material.
After completing the cut, the blade returns to its original position and the operator advances the material for the next cycle. The process is straightforward and well suited to mixed scrap that requires flexible manual positioning.
The Q43-630 is recommended when the regular material size does not exceed approximately 30 × 40 mm for square or rectangular steel and Φ35 mm for round steel. Before ordering, buyers should confirm:
If the material is larger, harder or processed in high daily volumes, a higher-force alligator shear should be selected.
Its stated cutting capacity mainly refers to ordinary metal scrap. Hardened or high-tensile steel may require a smaller allowable size or a higher-force machine. Please provide the material grade before selection.
No. Cutting capacity changes according to material strength, shape and feeding position. The 30 × 40 mm and Φ35 mm values should be treated as reference capacities under suitable conditions.
The standard motor power is 7.5 kW. Voltage, frequency and electrical components can be configured according to the buyer’s local industrial power supply.
Blade life depends on the material, operating frequency and maintenance. Regular inspection, correct blade clearance and timely sharpening can extend service life.
Yes, it can perform 8–12 cutting cycles per minute. However, actual output depends on material handling speed, scrap shape, operator efficiency and required cutting length.
