Product Overview

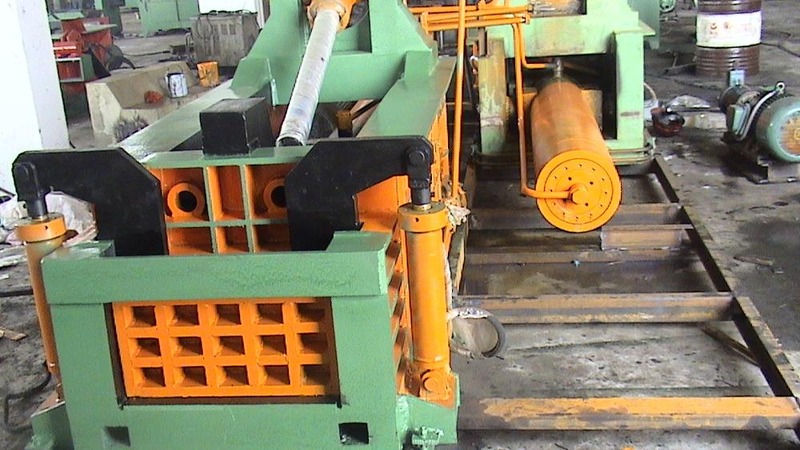

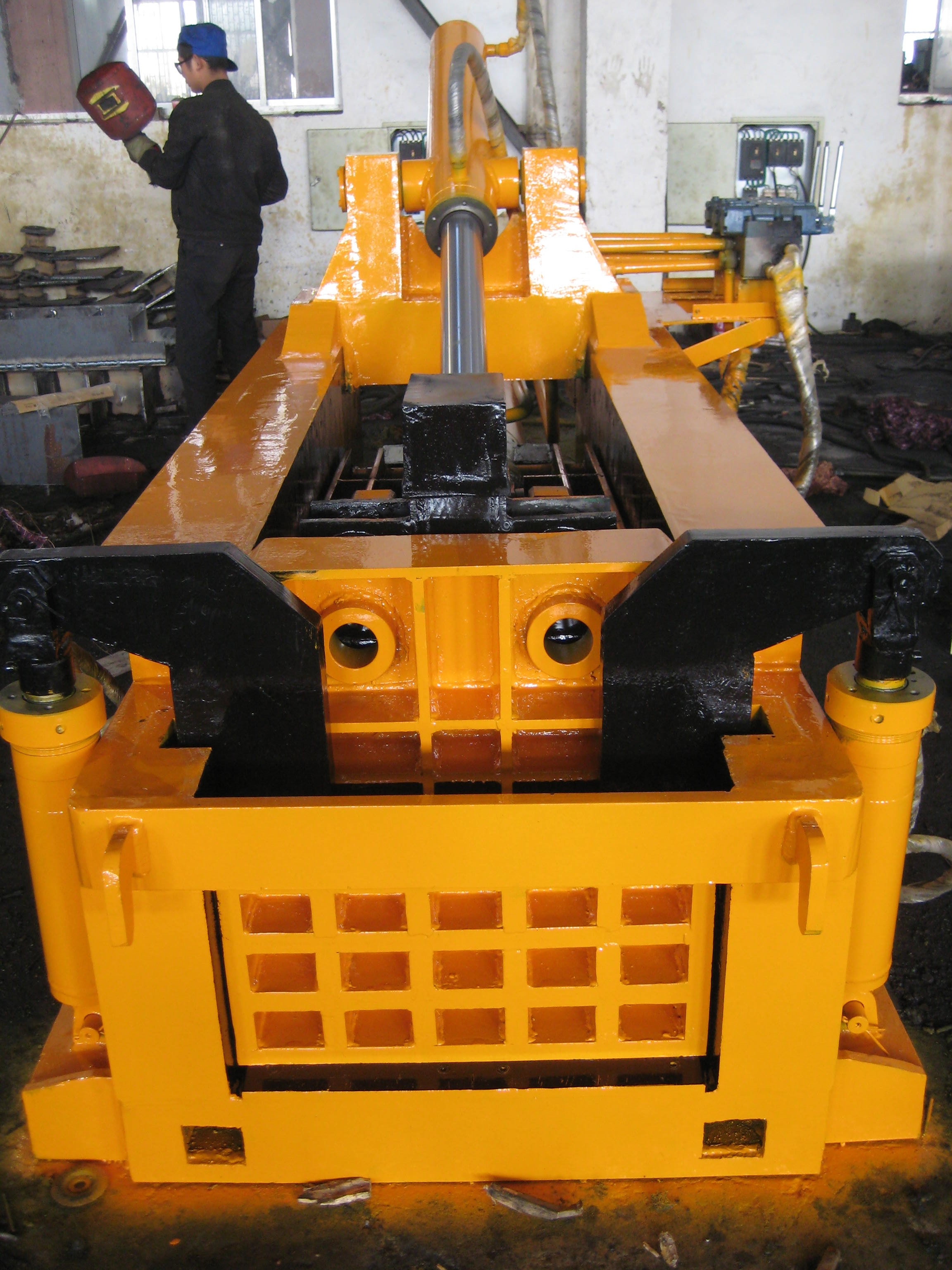

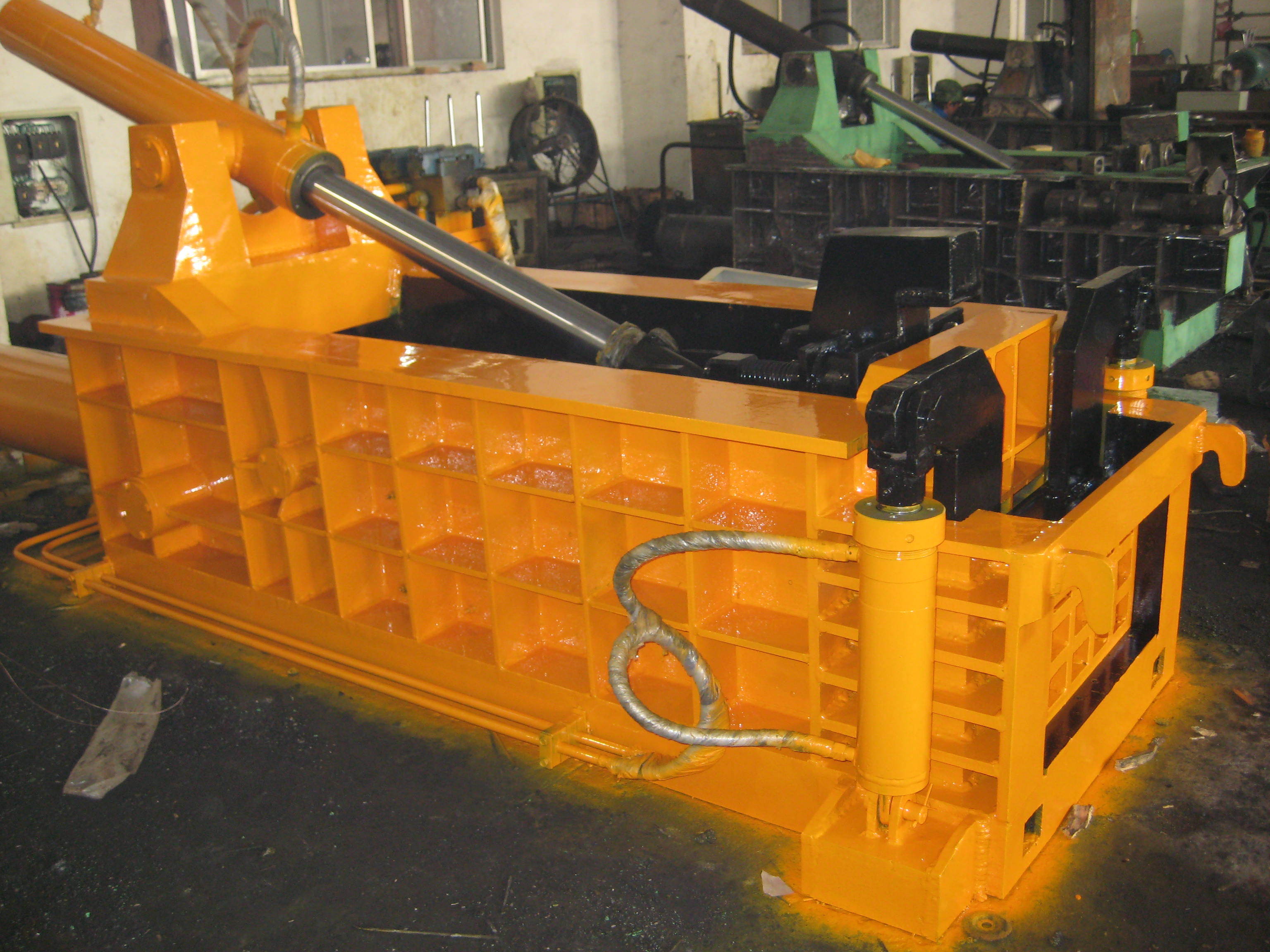

The Y83Q-135 metal baler is a compact yet highly efficient hydraulic scrap baling machine designed for small to medium-scale recycling operations. It is particularly suitable for processing light to medium scrap materials such as aluminum, thin steel sheets, copper scrap, and industrial offcuts. With a nominal force of 1350 kN, this model offers a reliable solution for businesses that need consistent bale quality without investing in larger, high-power systems.

What makes the Y83Q-135 stand out is its flexibility in bale size. Unlike conventional balers with fixed dimensions, this model allows adjustable bale length ranging from 50 mm to 300 mm, making it highly adaptable to different storage, transport, and furnace feeding requirements. This feature is especially valuable for scrap traders and recycling facilities handling diverse materials.

Key Features & Advantages

Flexible Bale Length for Different Applications
The adjustable bale length (50–300 mm) allows operators to control bale weight and size based on specific needs, improving handling efficiency and meeting various market requirements.

High Density Output for Reduced Logistics Cost
With bale density exceeding 1800 kg/m³, the machine ensures compact and tightly packed bales, significantly reducing transportation volume and improving melting efficiency.

Compact Structure, Maximum Efficiency
The 1300 × 600 × 600 mm compress chamber is optimized for fast feeding and efficient compression, making it ideal for facilities with limited space.

Energy-Saving Operation
Equipped with an 18.5 kW motor, the Y83Q-135 delivers stable performance while maintaining low energy consumption, offering an excellent cost-performance ratio.

Reliable Hydraulic System
The machine uses a stable hydraulic system to ensure consistent pressure during each cycle, resulting in uniform bale shape and reliable operation over long periods.

Simple and Durable Control System
Hand valve control provides straightforward operation and easy maintenance, reducing downtime and making it suitable for regions with limited technical support.

Efficient Forward-Out Discharge Design
The forward-out bale ejection system ensures smooth and quick discharge, improving workflow efficiency and reducing manual handling.

Technical Specifications

Application Scenarios

Recycling Industry + Aluminum & Light Scrap + Loose Material + Adjustable Bale Size Improves Handling Efficiency
Metal Workshops + Copper & Steel Offcuts + Frequent Scrap Output + Compact Baling Reduces Storage Pressure
Scrap Collection Centers + Mixed Scrap + Transport Optimization + High Density Lowers Freight Cost
Export Scrap Traders + Small to Medium Scrap Volume + Flexible Bale Requirement + Adjustable Length Meets Market Needs

Why Choose Y83Q-135

This model is not just a smaller version of larger balers—it is specifically engineered for flexibility and efficiency. The adjustable bale length, lower power requirement, and compact design make it ideal for businesses looking to maximize output while controlling operational costs. It is especially suitable for emerging markets or facilities upgrading from manual scrap handling to mechanized processing.

FAQ

Q1: What materials is the Y83Q-135 best suited for?
It is ideal for aluminum scrap, light steel, copper, stainless steel, and other non-ferrous metals. Heavy structural materials may require pre-cutting.

Q2: What is the typical bale weight?
Depending on material type and bale length setting, the bale weight typically ranges from 30 kg to 100 kg.

Q3: Can the bale size be adjusted easily?
Yes, the bale length can be adjusted through the control system, allowing flexible operation based on different needs.

Q4: Is this machine suitable for continuous operation?
Yes, with a cycle time under 150 seconds and stable hydraulic performance, it supports consistent daily operation.

Q5: Can automation be added?
Yes, PLC semi-automatic or automatic control can be customized according to customer requirements.

Q6: What about installation and after-sales service?
We provide full technical support including manuals, remote guidance, and optional on-site service. The machine comes with a 12-month warranty and lifetime technical support.
