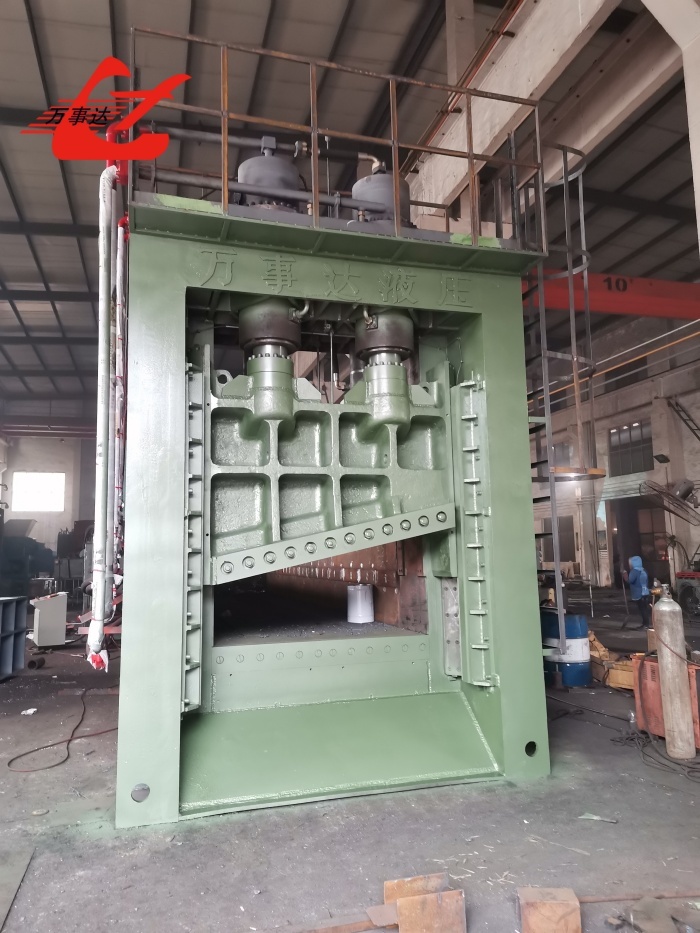

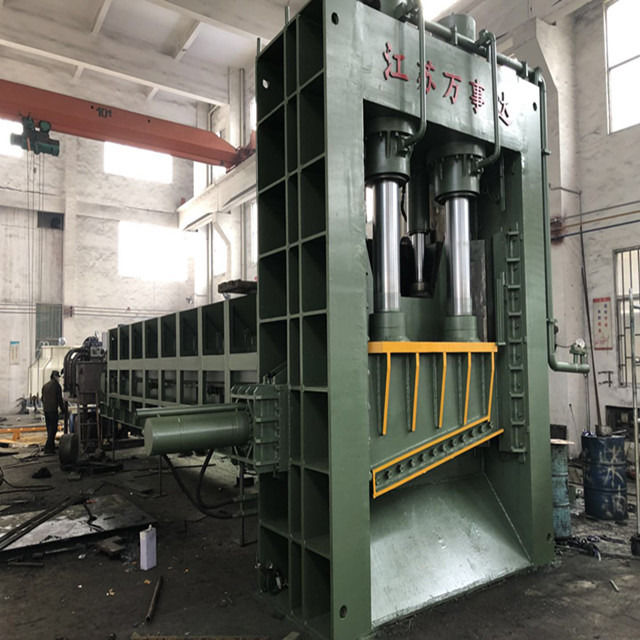

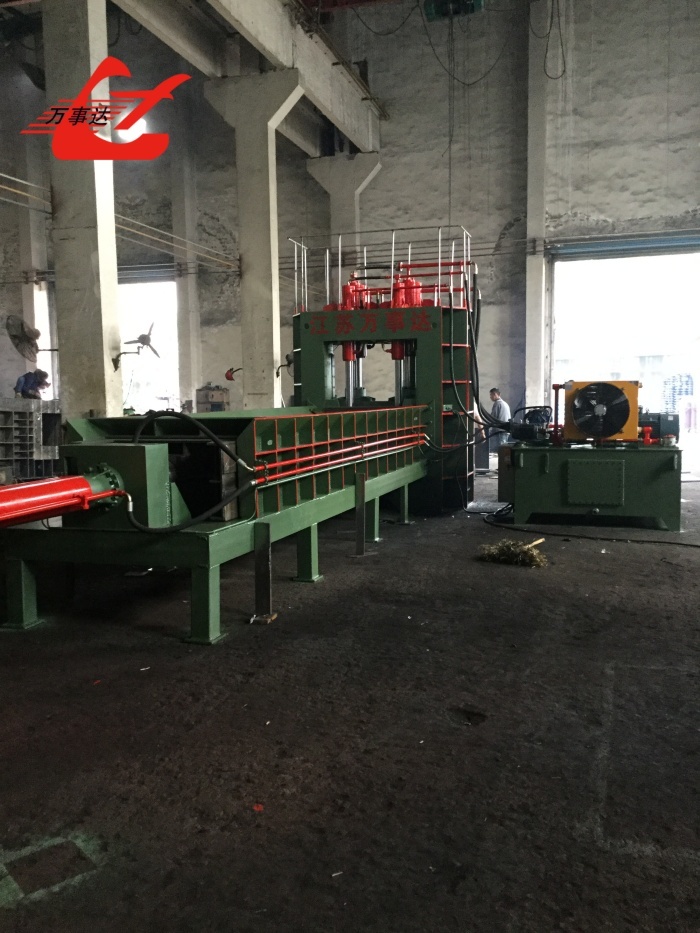

1000Ton Hydraulic Gantry Shear Machine With 2000mm Cutting Width For Heavy Scrap Metal Cutting And Recycling

Product Overview

The Q91Y-10000 Gantry Shear is a heavy-duty hydraulic scrap metal cutting machine designed for large recycling yards, steel scrap processing centers, foundries, and metal recovery plants. With a powerful 1001-ton shearing force, a large 8000×2000×1000mm charging box, and a 2000mm cutting width, this machine is built for processing oversized and high-volume scrap metal materials.

It is suitable for cutting ordinary steel scrap, square steel, round steel, steel plates, structural scrap, mixed heavy scrap, and other recyclable metal materials. For buyers seeking higher scrap processing efficiency, reduced manual cutting requirements, and better preparation of materials for furnace feeding or transportation, the Q91Y-10000 provides an efficient and practical solution.

The machine adopts PLC automatic control with remote control operation, while loading and unloading are completed manually or with supporting equipment such as a grab crane. The hydraulic system provides stable pressure and smooth movement, helping the machine maintain reliable performance during continuous industrial operation.

One major advantage of this model is its large material box and adjustable cutting length. The cutting length can be adjusted from 300–600mm by controlling the feeding cylinder action time, allowing customers to prepare scrap sizes according to downstream transportation, baling, melting, or resale requirements.

The Q91Y-10000 is designed for demanding working environments where high shearing force, wide cutting capacity, and automatic control are required. Its robust structure and industrial-grade components support continuous operation in large-scale scrap processing applications.

Features

The Q91Y-10000 Hydraulic Gantry Shear compresses and cuts large scrap metal into shorter, more manageable sections. The large charging box allows operators to feed bulky scrap materials efficiently, while the powerful shearing cylinders provide reliable cutting force for heavy-duty applications.

The machine uses hydraulic feeding, pressing, and cutting actions to complete the working process. The adjustable feeding speed and cutting length help customers control the final scrap size more flexibly. With PLC automatic control and remote operation, the machine is suitable for large recycling facilities and industrial scrap processing sites.

Key features include:

1. 1001-ton shearing force for heavy scrap metal processing

2. Large 8000×2000×1000mm charging box for efficient material loading

3. 2000mm cutting width for processing wider materials

4. Adjustable cutting length from 300–600mm

5. PLC automatic control and remote control operation

6. Servo motor system for efficient power transmission

7. Cooling system designed for continuous operation

Specifications

Application

The Q91Y-10000 Gantry Shear is mainly used in heavy scrap metal recycling and steel scrap processing. It is suitable for:

1. Scrap metal recycling yards

2. Steel mills and furnace feeding preparation

3. Foundries and casting plants

4. Metal recovery companies

5. Demolition scrap processing sites

6. Large industrial waste recycling centers

7. Steel structure and plate scrap cutting

It can process large and irregular scrap into shorter sections, making the material easier to stack, transport, sell, or melt.

How It Works

First, scrap metal is loaded into the charging box by grab crane or other loading equipment. The feeding cylinders push the material forward, while the pressing cylinders hold the scrap firmly before cutting.

Then, the shearing cylinders drive the upper blade downward to cut the material. The cutting length can be adjusted by controlling the feeding cylinder action time. After cutting, the processed scrap sections are discharged for collection, transportation, or furnace return.

The PLC control system helps coordinate feeding, pressing, and shearing actions. Remote control operation makes the machine more convenient for operators working in large scrap yards.

How To Choose

When choosing a gantry shear, buyers should consider material size, cutting capacity, daily output, workshop layout, power supply, and loading method.

The Q91Y-10000 is suitable for customers who need to process large and heavy scrap steel. If your material includes thick steel plates, large round steel, square steel, or bulky mixed scrap, this model provides the shearing force and box size needed for high-volume processing.

Before purchasing, buyers should confirm:

1. Main scrap type and maximum material size

2. Expected daily or hourly processing capacity

3. Required cutting length

4. Available workshop space

5. Power supply condition

6. Loading method, such as grab crane or excavator

For customers who require strong cutting force, large feeding capacity, and automatic control, the Q91Y-10000 is a suitable heavy-duty gantry shear solution.

FAQ

1. What materials can the Q91Y-10000 Gantry Shear cut?

It can cut ordinary steel scrap, square steel, round steel, steel plates, structural scrap, mixed heavy scrap, and other recyclable metal materials. The actual cutting performance depends on material strength, shape, and feeding condition.

2. What is the maximum cutting capacity of this machine?

The machine can cut square steel up to 160×160mm, round steel up to Φ170mm, and steel plates up to 65×1800mm or 95×900mm under suitable material conditions.

3. Can the cutting length be adjusted?

Yes. The cutting length can be adjusted from 300–600mm by changing the feeding cylinder action time. This helps customers control the final scrap size according to transportation, resale, or furnace feeding requirements.

4. Is this gantry shear easy to operate?

Yes. The machine adopts PLC automatic control with remote control operation. Feeding, pressing, and shearing actions are coordinated by the control system, making daily operation more convenient.

5. What should buyers confirm before ordering?

Buyers should confirm scrap material type, maximum material size, required output, cutting length, loading method, power supply, and installation space. These details help ensure the selected gantry shear matches the actual working site.
