1350kN Forward-Out Metal Baler Y83Q-135 For Scrap Metal Recycling And Compact Bale Production

1350kN Forward-Out Metal Baler Y83Q-135 For Scrap Metal Recycling And Compact Bale Production

Product Overview

The Y83Q-135 Metal Baler is a compact and practical hydraulic baling machine designed for recycling yards, metal collection stations, small and medium scrap processing plants, and workshops that need to compress loose metal waste into dense, easy-to-transport bales. With a 1350kN nominal force, a 1300×600×600mm compression chamber, and a bale size of (50–300)×600×240mm, this model is especially suitable for customers who want a reliable scrap metal baler with stable compression performance, simple operation, and lower investment cost.

This machine adopts a forward-out bale discharging structure, which allows the finished bale to be pushed out from the front of the machine after compression. Compared with manual unloading or side-turning structures, the forward-out design helps improve bale removal efficiency and makes the operation more convenient for daily recycling work. The machine is equipped with hand valve control, making it easy for operators to understand, operate, and maintain, especially in markets where customers prefer a simple hydraulic system without complicated electrical control.

For buyers who handle scrap iron, aluminum scrap, copper scrap, light steel waste, metal offcuts, thin plate waste, and mixed non-ferrous metal materials, the Y83Q-135 provides a balanced solution between machine size, bale density, power consumption, and working efficiency. Its 18.5kW motor power keeps energy consumption reasonable, while the bale density can reach over 1800kg/m³, helping customers reduce storage space, improve truck loading quantity, and lower transportation costs.

Cause

Many scrap metal recycling companies face the same problems in daily operation: loose metal waste takes up too much space, transport trucks cannot be fully loaded, manual handling is inefficient, and irregular scrap is difficult to store or sell at a better price. For small and medium recycling yards, buying an oversized baler may increase unnecessary investment, electricity consumption, and site requirements.

The Y83Q-135 Metal Baler is developed for customers who need a cost-effective hydraulic metal baler that can handle regular scrap volume without requiring a large installation area or complex operation system. It is a practical choice when customers want to improve recycling efficiency but do not need a heavy-duty 250-ton or 315-ton machine.

Solution

The Y83Q-135 solves these problems by compressing loose scrap metal into compact rectangular bales. The finished bales are easier to stack, load, transport, and sell. With a capacity of 1800–2500kg/h, this machine can support continuous daily recycling work for small and medium processing volumes.

Key advantages include:

• Forward-out bale discharge for easier bale removal
• 1350kN hydraulic pressing force for stable compression
• Compact compression chamber suitable for light and medium scrap materials
• Hand valve control for simple operation and convenient maintenance
• Over 1800kg/m³ bale density to reduce storage and freight cost
• 18.5kW motor power for lower energy consumption
• Suitable for recycling yards with limited space or moderate processing demand

Specifications

Application

The Y83Q-135 hydraulic metal baler can be used in many recycling and metal processing scenarios, including:

• Scrap metal recycling yards
• Small and medium metal collection stations
• Steel structure processing workshops
• Aluminum and copper recycling sites
• Metal product factories with leftover offcuts
• Hardware waste recycling plants
• Foundry material preparation areas
• Waste metal storage and transport centers

It is suitable for compressing various loose metal materials such as scrap iron, light steel scrap, aluminum scrap, copper scrap, metal sheets, thin steel plates, metal chips mixed with offcuts, and other recyclable metal waste. For customers who want to improve loading efficiency and reduce transportation frequency, this model provides a practical and affordable baling solution.

How It Works

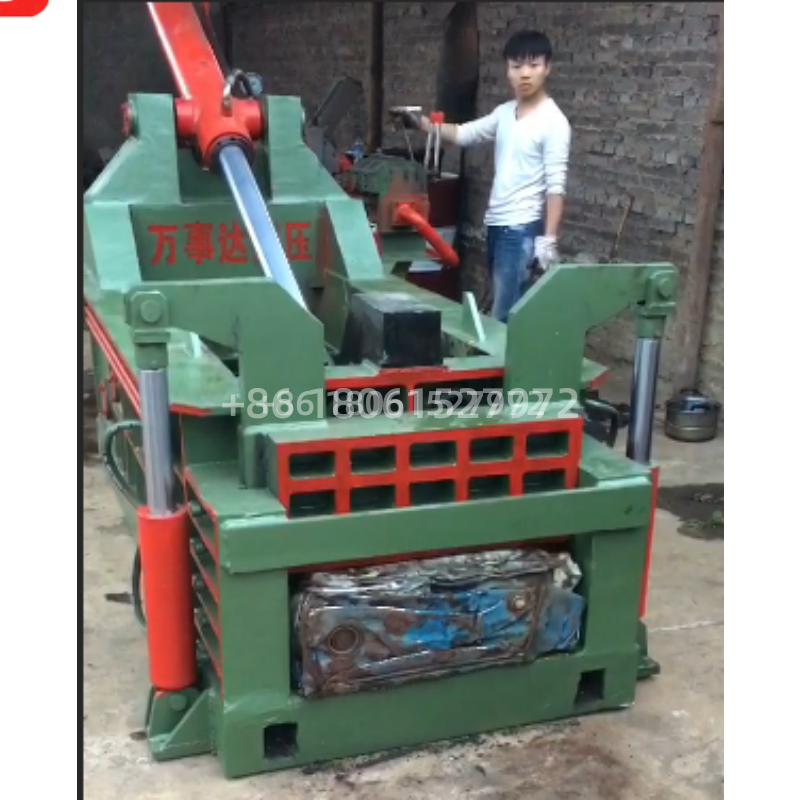

The operator loads loose scrap metal into the compression chamber manually or with auxiliary feeding equipment according to the working site condition. After loading, the hydraulic system drives the main pressing cylinder to compress the scrap material inside the chamber. Under the pressure of 1350kN, the loose material is formed into a compact bale.

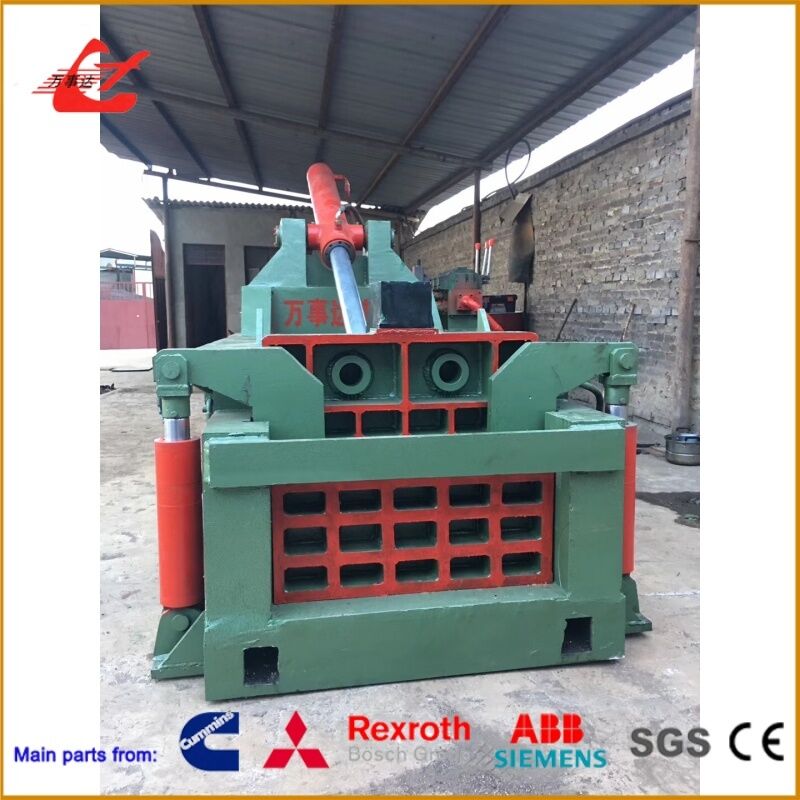

After the compression process is completed, the finished bale is discharged from the front of the machine. The forward-out discharging structure makes it easier for workers to collect the bale and move it to the storage or loading area. Since the machine uses hand valve control, the operator can control the compression and discharging process directly, making the whole operation simple, visible, and easy to manage.

How To Choose

The Y83Q-135 Metal Baler is recommended if your recycling business has the following needs:

• You process about 1.8–2.5 tons of scrap metal per hour
• Your materials are mainly light steel scrap, aluminum scrap, copper scrap, metal offcuts, or mixed recyclable metal waste
• You need compact bales for easier storage and transportation
• You prefer a simple hydraulic system with hand valve control
• Your site space is limited and you do not want a very large baling machine
• You need a lower investment solution compared with larger 160-ton, 200-ton, or 250-ton metal balers

If your scrap material is very thick, heavy, or difficult to compress, or if your daily processing capacity is much higher, a larger model such as a 160-ton, 200-ton, 250-ton, or 315-ton metal baler may be more suitable. For customers who are not sure which model to choose, the best way is to confirm the scrap material type, expected hourly or daily capacity, feeding method, bale size requirement, and available workshop space.

FAQ

Q1: What materials can the Y83Q-135 Metal Baler process?
The Y83Q-135 is suitable for scrap iron, light steel scrap, aluminum scrap, copper scrap, thin metal sheets, metal offcuts, and mixed recyclable metal waste. It is more suitable for light and medium scrap materials rather than very thick or heavy steel scrap.

Q2: Is the Y83Q-135 Metal Baler suitable for small recycling yards?
Yes. This model is a good choice for small and medium recycling yards because it has a compact chamber size, simple operation, reasonable power consumption, and stable bale density. It helps customers improve storage and transportation efficiency without investing in an oversized machine.

Q3: What is the advantage of forward-out bale discharging?
Forward-out discharging allows the finished bale to be pushed out from the front of the machine. This makes bale removal more convenient and helps operators arrange the working area more easily, especially when the site has limited space.

Q4: Is the machine automatic or manual operation?
The Y83Q-135 uses hand valve control. This means the machine is simple to operate and maintain. It is suitable for customers who prefer a reliable hydraulic baler with direct manual control instead of a more complex PLC automatic system.

Q5: How do I know whether Y83Q-135 is the right model for my project?
You can choose this model if your expected capacity is around 1800–2500kg/h and your materials are mainly light or medium scrap metal. If your scrap is heavier, your daily output is higher, or you need larger bale size, a bigger metal baler model may be recommended.
