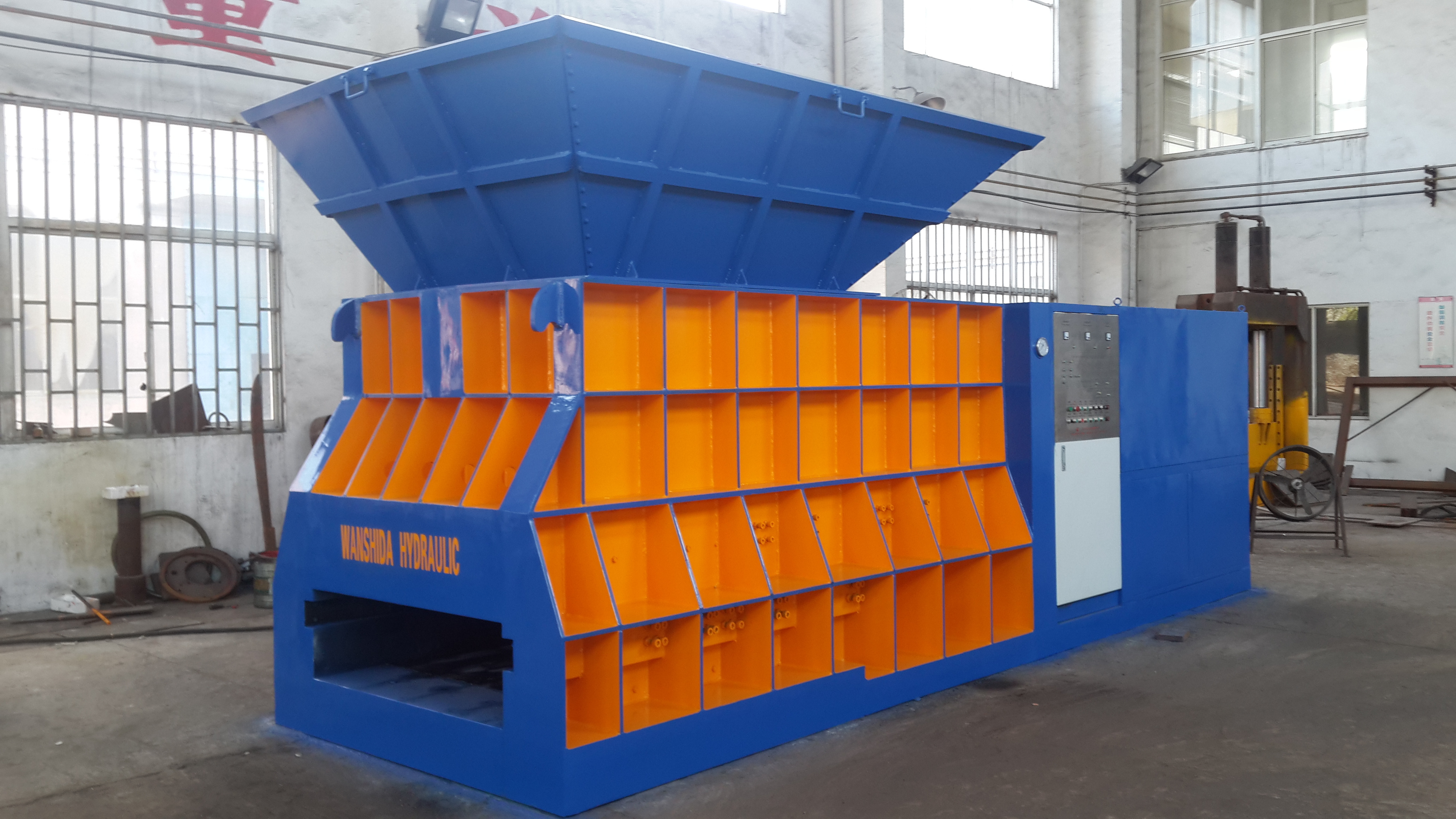

Scrap Shearing Machine For Scrap Metal Cutting

Wanshida Horizontal Shear (Models: Q43W-5000A, Q43W-6300, Q43W-8000)

Product Description

Wanshida offers a range of high-performance horizontal shears, certified with CE and ISO9001 and manufactured in Jiangsu, China.

• Model Q43W-5000A is a powerful shear with a 200-ton shearing force and a rated power of 110 kw. Weighing 23 tons, it is equipped with a 1400mm High Carbon Steel blade and a fast cutting speed of 2-3 times/min. The feeding size is 1400x1400 mm, and the discharging size is 1400mm X 600mm. It has a 1-year warranty and is available in a customizable color.

• Model Q43W-6300 operates with an approximately 147KW motor power and offers both Manual and Automatic operation modes via a PLC Control System. This model has a 1400mm High Carbon Steel blade and a cutting speed of 2-3 cuts per minute. Its feeding size is 1400x1400mm, and it discharges at 1400x600mm, processing waste metal, steel, and scrap. It comes with a 1-year warranty and is also customizable in color.

• Model Q43W-8000 is designed for extreme duty with an impressive 800-ton Nominal Force. Weighing 23 tons, it features a robust 1600mm High Carbon Steel blade. The machine has a large feeding size of 3400x2500mm and a discharging size of 1600x450mm, making it ideal for processing large amounts of waste metal, steel, and scrap.

Key Features & Technical Specifications

Applications

The Horizontal Shear Q43W-5000A is suitable for a wide range of industrial applications, including metal recycling facilities, scrap yards, and metal fabrication plants. Its robust design and powerful shearing force allow it to efficiently process various types of scrap metal, preparing them for recycling or further use.

Support and Services

As a product of Wanshida, the Q43W-5000A is supported by comprehensive technical services. This includes guidance on installation, operation, and maintenance to ensure the machine runs efficiently with minimal downtime.

Packing and Shipping

This machine is manufactured in Jiangsu, China, and is prepared for secure transport. The packaging is designed to protect the machine from damage, ensuring it arrives safely at its destination.

FAQ: Horizontal Shear Q43W-5000A

• Q: What is the shearing force of this machine?

  • A: The shearing force is 200 tons.

• Q: What is the rated power of the motor?

  • A: The rated power is 110 kW.

• Q: What is the cutting speed?

  • A: The cutting speed is 2-3 times per minute.

• Q: What is the warranty period?

  • A: The machine comes with a 1-year warranty.
