| Place of Origin: | China |
|---|---|
| Brand Name: | Wanshida |
| Certification: | ISO9001,CE |
| Model Number: | Q43L-8000 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiation |
| Packaging Details: | Sea worthy |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1sets/month |
| Nominal Cutting Force: | 8000 KN | Condition: | New |
|---|---|---|---|
| Total Installed Power: | Approximately 282 KW | Feeding Box Size: | 8000 × 1950 × 900 Mm |
| Main Motor System: | Servo Motor | Blade Length: | 2000 Mm |
| Control System: | PLC | Shearing Frequency: | 2–3 Times Per Minute |
| Highlight: | Hard Steel Spoke Gantry Shearing Machine,Ultimate Gantry Shearing Machine,Hard Steel Gantry Shearing Machine |
||

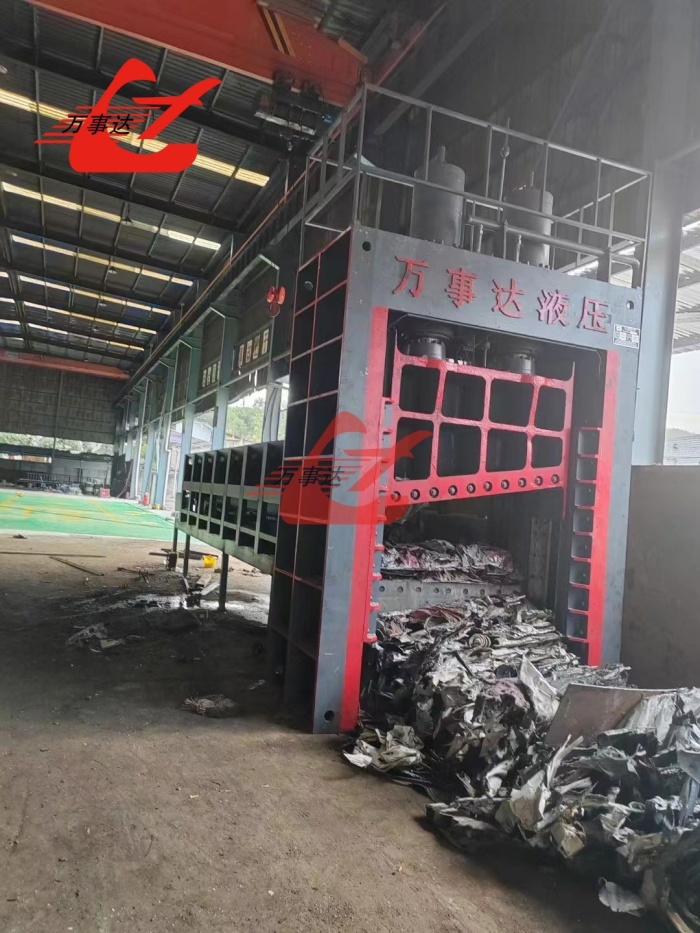

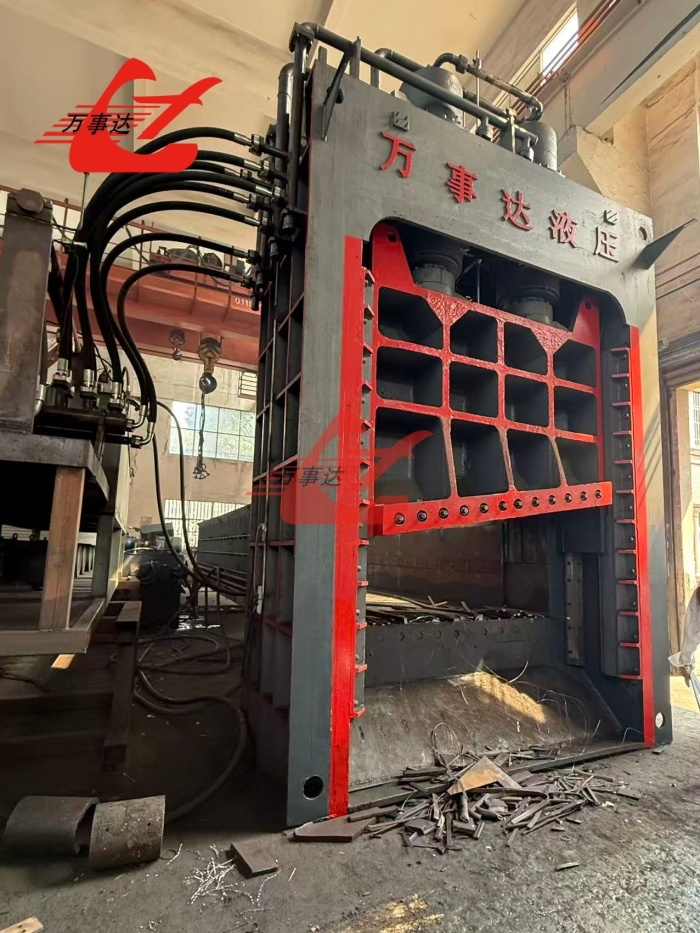

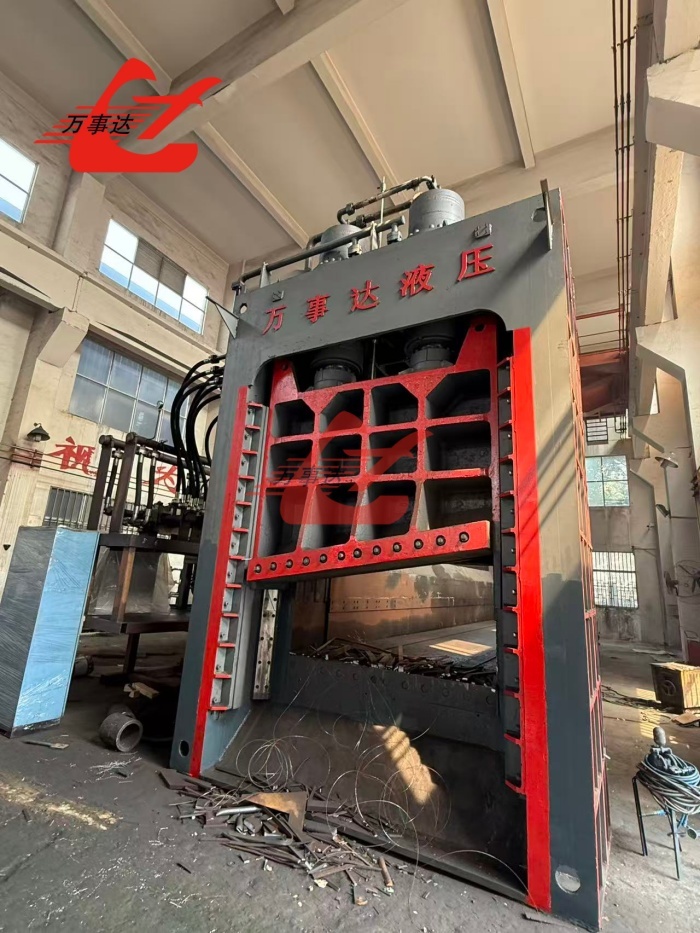

The Q43L-8000 Gantry Shear is a heavy-duty hydraulic scrap processing machine designed for high-volume metal recycling yards, steel mills, foundries and scrap distribution centers. With approximately 8000 kN of cutting force, a 2000 mm blade and an 8000 mm long feeding box, the machine can efficiently process large quantities of mixed ferrous scrap.
It is suitable for cutting steel plates, profiles, pipes, rebars, structural scrap and dismantled machinery components into shorter, furnace-ready sizes. The long feeding box allows operators to load loose and oversized material directly by crane or material handler, reducing the need for extensive pre-processing.
The servo-driven hydraulic system adjusts power output according to the working load. This helps reduce unnecessary energy consumption during low-load operation while maintaining strong cutting performance when processing dense or heavy scrap.
Large and irregular scrap creates practical difficulties for recycling businesses. Oversized materials cannot be loaded directly into furnaces or transported efficiently, while manual cutting requires significant labor and may create additional safety risks.
Common operating challenges include:
The Q43L-8000 combines material feeding, compression and shearing in one continuous processing system. Scrap is loaded into the feeding box, moved toward the cutting area and securely compressed before each cutting stroke.
Its 2000 mm blade provides a wide cutting opening for bulky loads, while the hydraulic hold-down system stabilizes loose material during shearing. The machine can repeatedly process long scrap into manageable sections, helping buyers improve output, reduce handling time and prepare more consistent furnace feed.
Key advantages include:
| Item | Specification |
|---|---|
| Model | Q43L-8000 Gantry Shear |
| Nominal Cutting Force | 8000 kN |
| Feeding Box Size | 8000 × 1950 × 900 mm |
| Blade Length | 2000 mm |
| Main Motor System | Servo motor |
| Total Installed Power | Approximately 282 kW |
| Standard Power Supply | 380 V / 3 Phase / 50 Hz/custom |
Technical configurations can be customized according to the buyer’s raw material, required output and local electrical supply.
The Q43L-8000 industrial hydraulic gantry shear is suitable for processing:
Material thickness, shape, density and tensile strength should be confirmed before final machine selection.
Scrap is loaded into the feeding box by crane or material handler. The hydraulic pushing system moves the material toward the cutting chamber. Before shearing, the hold-down device compresses and stabilizes the scrap to prevent movement.
The main cutting cylinders then drive the blade downward to cut the material. After each stroke, the remaining scrap is pushed forward for the next cut. The process continues until the complete load has been converted into the required length.
The operator can monitor and control feeding, compression and shearing through the electrical control system.
The Q43L-8000 is recommended for businesses processing large daily volumes of heavy or mixed steel scrap. Before ordering, buyers should provide:
If the material is mainly light scrap, a smaller gantry shear may provide better operating economy. Extremely thick or high-strength steel should be evaluated separately by the manufacturer.
Yes. It can process mixed ferrous scrap such as plates, pipes, profiles and structural steel. The maximum size and thickness must be confirmed before production.
The machine has a hydraulic hold-down system that compresses and stabilizes scrap inside the cutting area. A separate baler is generally unnecessary for normal mixed scrap.
Yes. The feeding distance and cutting length can be adjusted according to furnace requirements and the type of scrap being processed.
A material handler, excavator with grab or overhead crane is normally used to load scrap into the feeding box.
Yes. Voltage, frequency, PLC components, motor configuration and control language can be adapted to local operating requirements.
