Product Overview

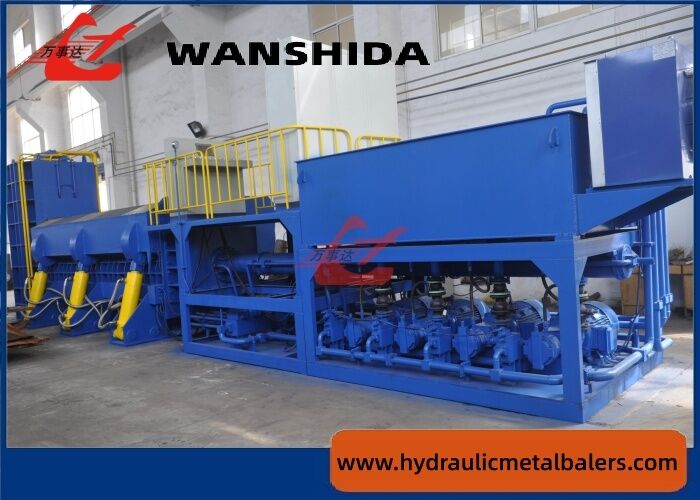

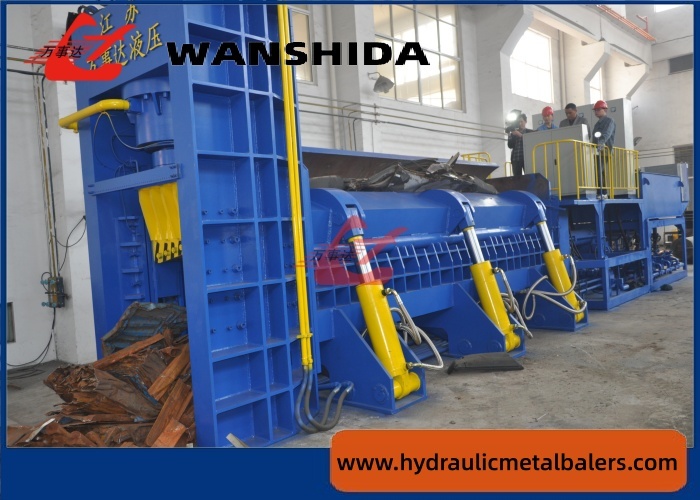

The Y83Q-4000A scrap baler shear, also known as a hydraulic metal baler shear, is designed for scrap metal recycling yards, steel recovery centers, metal processing plants, and industrial waste recycling operations. This machine combines scrap compression and shearing in one system, helping customers reduce scrap volume, improve cutting efficiency, and prepare recyclable metal materials for transportation or further processing.

With a powerful 4000kN cutting force and dual 1600kN side cylinders, the Y83Q-4000A can compress loose scrap into a compact form before cutting. This structure improves feeding stability and makes the final scrap easier to handle, stack, load, and sell. The compression chamber size is 3000×1200×680mm, suitable for processing light and medium scrap materials such as steel offcuts, sheet metal, metal profiles, aluminum scrap, appliance shells, and mixed recyclable metal waste.

Compared with a traditional metal baler that only compresses scrap, the Y83Q-4000A provides both baling and cutting functions. The bale width is 460mm, the bale height can be adjusted from 300mm to 460mm, and the bale length is 300–600mm. This makes the processed scrap more suitable for truck transportation, container loading, furnace feeding, or downstream shredding.

The machine is equipped with PLC automatic control, making operation easier and more stable. With a cutting speed of 2–3 times per minute and 74kW motor power, it is suitable for customers who require continuous scrap processing with controlled output size. For recycling companies looking for a compact, efficient, and practical scrap handling solution, the Y83Q-4000A hydraulic metal baler shear offers strong value in daily production.

Cause

Loose scrap metal often creates serious problems for recycling businesses. It occupies large storage space, lowers transportation efficiency, and makes material handling difficult. If scrap is not compressed or cut before shipping, trucks and containers may carry too much empty space, increasing logistics costs.

For many recycling yards, scrap materials come in different shapes and sizes. Long metal strips, irregular offcuts, thin steel plates, and mixed scrap are difficult to stack neatly. Manual cutting is slow, unsafe, and labor-intensive. A single-function baler may reduce volume, but it cannot always provide the proper scrap length required by steel mills or downstream processors.

Customers therefore need a machine that can compress scrap first and then cut it into manageable sizes. This is why a hydraulic scrap baler shear is often a better choice for medium-capacity recycling operations.

Solution

The Y83Q-4000A scrap baler shear solves these problems by integrating compression, side pressing, and cutting into one automatic hydraulic system. The left and right 1600kN cylinders compress the scrap material from both sides, forming a stable bale before shearing.

After compression, the 4000kN cutting force cuts the scrap into short sections with adjustable bale length from 300mm to 600mm. This reduces scrap volume, improves loading density, and makes the material easier to transport or feed into further recycling processes.

The PLC automatic control system improves production consistency and reduces operator workload. Customers can process scrap more safely and efficiently while achieving more uniform output size.

Specifications

Application

The Y83Q-4000A hydraulic metal baler shear is suitable for processing various recyclable scrap materials in metal recycling and steel recovery industries.

Typical application areas include:

Scrap metal recycling yards

Steel scrap collection centers

Metal processing workshops

Automobile dismantling facilities

Industrial waste recycling stations

Steel mills and foundry preparation sites

Non-ferrous metal recycling plants

Suitable materials include:

Light steel scrap

Sheet metal

Steel offcuts

Aluminum scrap

Stainless steel scrap

Copper and non-ferrous metal scrap

Appliance shells

Metal profiles

Mixed recyclable metal waste

By compressing and cutting scrap into smaller, more regular sizes, the machine helps customers improve yard management, reduce transportation costs, and increase the value of processed scrap.

How It Works

The operator first loads loose scrap metal into the compression chamber. The large chamber size of 3000×1200×680mm allows the machine to accept different shapes of scrap materials.

After feeding, the hydraulic side cylinders start working. The left and right cylinders apply 1600kN force respectively, pressing the material into a compact shape. This step helps stabilize the scrap and prepares it for cutting.

Then the main cutting system applies 4000kN cutting force to shear the compressed scrap into short sections. The bale length can be controlled between 300mm and 600mm according to customer requirements and downstream processing needs.

The PLC automatic control system coordinates the working process, making the operation more convenient, stable, and efficient. The finished scrap is easier to stack, transport, sell, or send to furnaces and shredding lines.

How To Choose

The Y83Q-4000A is suitable for customers who need both compression and cutting functions in one machine. If your scrap material is loose, irregular, and difficult to transport, this scrap baler shear can help reduce volume and improve material handling efficiency.

If your customers or downstream steel mills require shorter scrap length, the 300–600mm bale length range is practical for many recycling applications. The 4000kN cutting force makes it suitable for light and medium scrap processing, while the dual side cylinders help improve compression stability.

When choosing this model, buyers should confirm the main scrap type, material thickness, expected output size, daily processing capacity, power supply condition, and available installation space. For heavier scrap or higher cutting capacity, a larger gantry shear or container shear may be more suitable.

FAQ

Q1: What is the difference between a scrap baler shear and a normal metal baler?

A: A normal metal baler mainly compresses scrap into bales, while a scrap baler shear can compress and cut the scrap into shorter sections. This makes the material easier to transport, stack, sell, or feed into downstream recycling equipment.

Q2: What materials can the Y83Q-4000A process?

A: It is suitable for light and medium scrap metal, including steel offcuts, sheet metal, aluminum scrap, stainless steel scrap, appliance shells, metal profiles, and mixed recyclable metal waste.

Q3: What is the cutting capacity of this machine?

A: The Y83Q-4000A has a 4000kN cutting force and a cutting speed of 2–3 times per minute. Actual performance depends on material type, thickness, density, and feeding condition.

Q4: Can the bale size be adjusted?

A: The bale width is 460mm, the bale height range is 300–460mm, and the bale length can be adjusted between 300mm and 600mm according to processing needs.

Q5: Is the machine easy to operate?

A: Yes. The machine uses PLC automatic control, which helps improve operation stability, reduce manual workload, and make the production process more efficient.
