2000mm Blade Customizable Gantry Shear Perfect For Accurate Fast Cutting In Industrial Settings

Product Overview

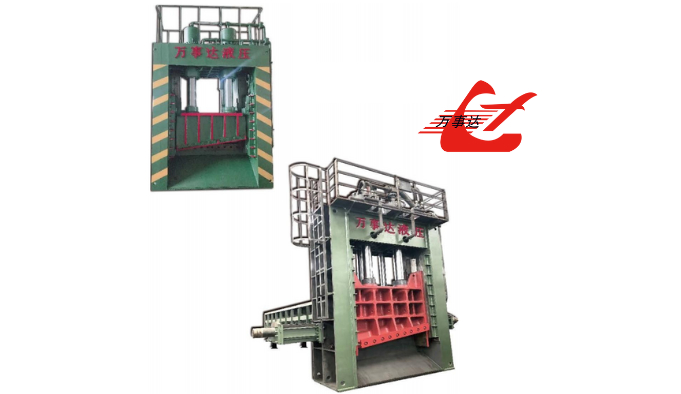

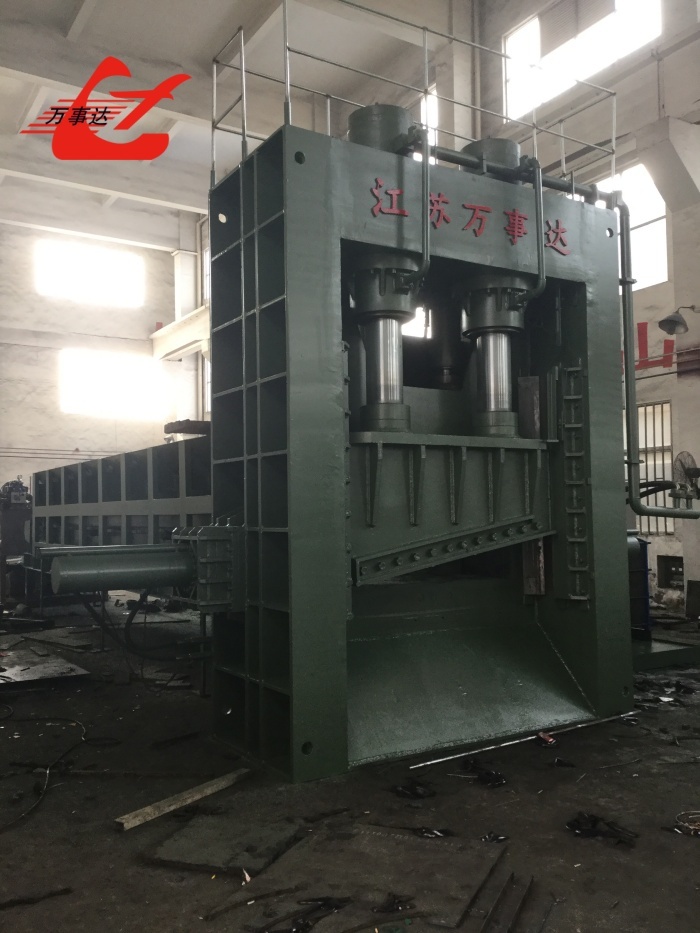

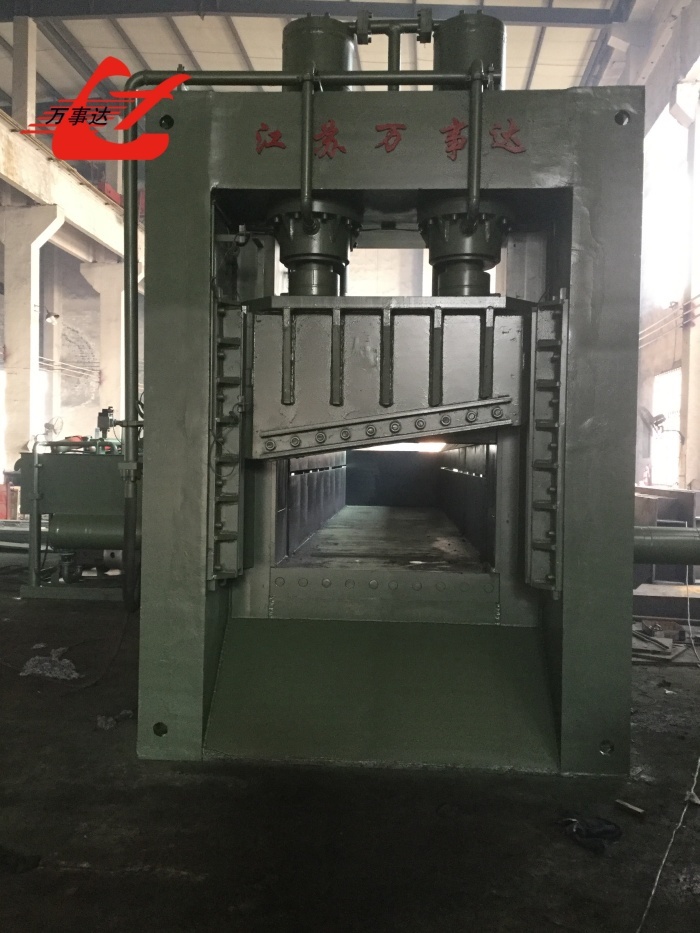

The Q43L-8000 hydraulic gantry shear is engineered for large scrap yards, steel mills, foundries, and metal recycling centers that need to process bulky ferrous scrap continuously. With an 8000 kN cutting force, a 2000 mm cutting blade, and an 8000 × 1950 × 900 mm charging box, it converts long and irregular steel scrap into compact, manageable pieces.

Instead of relying on manual pre-cutting, operators can load mixed scrap directly into the large chamber. The machine completes compression, feeding, clamping, and shearing through a coordinated hydraulic system. This helps reduce handling time while producing more consistent scrap sizes for transportation, sorting, and furnace charging.

The Q43L-8000 is especially suitable for businesses seeking to improve the value of collected scrap by turning difficult-to-handle material into cleaner and more uniform furnace feed.

Cause

Long steel sections, pipes, plates, and dismantled structures create several problems in daily recycling operations. They occupy excessive storage space, increase transportation costs, and are difficult to load into containers or furnaces.

Traditional flame cutting requires skilled workers, consumes fuel, and often produces inconsistent results. Small shears may also require the material to be prepared in advance, limiting productivity when dealing with large volumes of mixed scrap.

For high-capacity recycling facilities, the real challenge is not simply cutting metal. It is establishing a stable process that can load, compress, feed, and shear bulky material with less manual intervention.

Solution

The Q43L-8000 combines a large charging chamber with powerful hydraulic compression and an automatic feeding system. Loose scrap is held inside the chamber, compressed into a controlled shape, and pushed toward the cutting head.

Its reinforced gantry structure withstands repeated high-pressure cycles, while the 2000 mm blade provides a wide cutting area. PLC control coordinates each movement, helping the machine maintain a steady working rhythm of approximately 2–3 cuts per minute.

Key buyer benefits include:

• Less manual preparation before loading
• Stable feeding of mixed and irregular scrap
• Adjustable cutting length for different recycling requirements
• Remote operation for convenient production control
• Replaceable blades and wear components for easier maintenance
• Customizable voltage, frequency, and electrical configuration

Specifications

Application

The Q43L-8000 is suitable for processing:

• Steel plates and production offcuts
• Round bars, square bars, and reinforcement steel
• Pipes, tubes, angles, and channels
• Automobile frames and dismantled components
• Structural steel from demolition projects
• Mixed ferrous scrap from recycling yards
• Steel mill and foundry return scrap

Actual cutting performance depends on the material grade, wall thickness, shape, loading arrangement, and whether multiple pieces are cut together.

How It Works

Scrap is first loaded into the charging box by a material handler. Hydraulic covers compress and stabilize the material inside the chamber. The feeding cylinder then pushes the compressed scrap toward the blade according to the preset feeding distance.

Before cutting, the clamping device holds the material in position. The main cutting cylinder drives the blade downward to complete the shearing action. After the cut material is discharged, the feeding and cutting sequence repeats automatically.

This integrated workflow allows one machine to perform several processing stages without repeatedly moving the scrap between separate workstations.

How To Choose

Before selecting a gantry shear, buyers should evaluate the daily processing volume, maximum material dimensions, steel grade, required output length, local power supply, and loading equipment.

The Q43L-8000 is recommended for facilities with a steady supply of bulky ferrous scrap and sufficient space for a large processing line. If the material is mainly light sheet scrap, a smaller shear or metal baler may offer better operating efficiency. Extremely thick alloy steel should be evaluated separately before confirming the model.

Providing scrap photos, dimensions, wall thickness, and expected hourly capacity helps determine whether the Q43L-8000 is the correct solution.

FAQ

What materials can the Q43L-8000 process?

It is designed for common ferrous scrap, including steel plates, pipes, profiles, bars, structural offcuts, and dismantled steel components. Special alloys and exceptionally thick materials require technical confirmation.

Can the cutting length be adjusted?

Yes. The feeding distance can be configured according to the required output size. The achievable accuracy may vary with the shape and compression condition of the scrap.

How is the machine operated?

The shear uses PLC control and can be operated by remote control. Automatic and manual modes can be provided for normal production, adjustment, and maintenance.

How should the machine be loaded?

A material handler or grab crane is normally used to load scrap into the charging box. The loading equipment should be selected according to the yard layout and material volume.

Can the voltage and control system be customized?

Yes. The electrical system can be configured for the destination country’s voltage and frequency. Optional configurations can also be discussed according to the buyer’s production and safety requirements.
