Product Overview

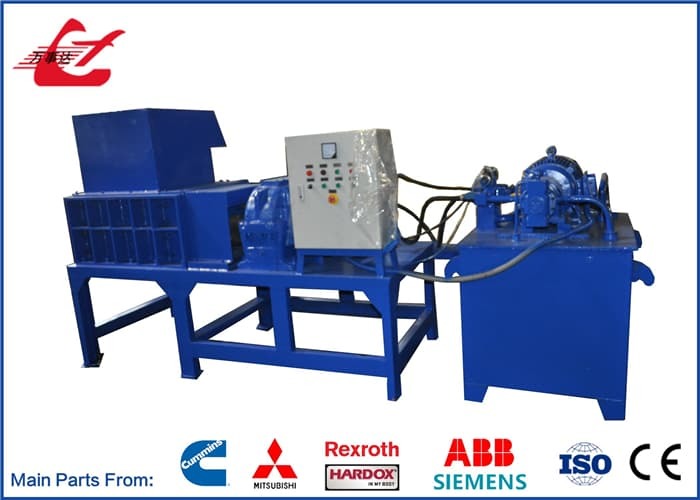

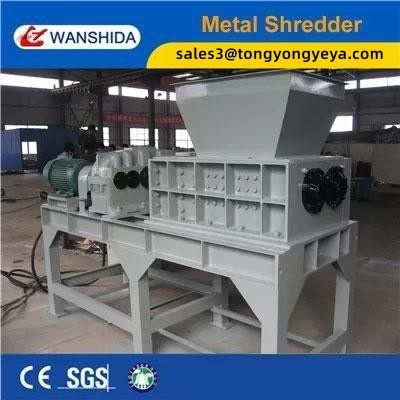

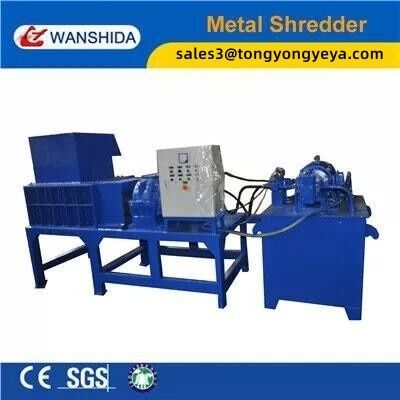

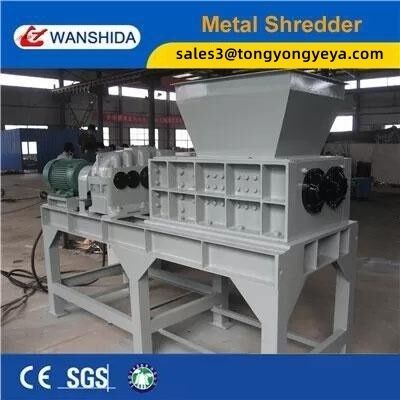

The Q43P-600A Metal Shredder is a compact and practical scrap metal size-reduction machine designed for small and medium recycling plants that need to process loose, bulky, and irregular metal waste before baling, melting, or transportation. With a 7.5 kW motor, 20 pieces of 300 mm diameter blades, and a low-speed 16 rpm shredding system, this machine is built for stable operation, strong cutting force, and long-term daily use.

For many recycling businesses, the biggest challenge is not only collecting scrap metal, but also reducing its volume and preparing it for the next processing step. Loose aluminum profiles, thin steel sheets, metal cans, copper scraps, and mixed light metal waste often occupy too much space and are difficult to transport efficiently. The Q43P-600A helps solve this problem by shredding materials into smaller pieces of around 30×30 mm, making them easier to store, load, bale, sell, or feed into a furnace.

Compared with large industrial shredders, this model is more suitable for customers who want a lower investment cost, smaller installation space, and easier operation. Its machine size of 2160×840×1600 mm allows it to fit into many workshop layouts, while the 2000 kg machine weight ensures a strong and stable structure during operation.

The shredding chamber size is 610×550 mm, and the hopper feeding mouth is 510×720 mm, which provides enough feeding space for common light scrap materials. The machine capacity is 1–2 m³/h, making it a good choice for recycling stations, metal collection yards, aluminum workshops, small scrap dealers, and factories that generate metal waste from production.

WANSHIDA can also provide customized solutions according to the customer’s scrap type, required output size, local voltage, feeding method, and downstream processing needs.

Cause

Small recycling businesses often face several practical problems when handling loose scrap metal:

• Scrap materials take up too much warehouse space
• Transportation cost is high because the material is too bulky
• Workers spend too much time cutting or sorting irregular metal pieces
• Large scrap pieces are difficult to feed into balers or furnaces
• Mixed metal waste has lower resale value if not properly processed
• Manual cutting creates higher labor cost and safety risks

For customers who do not need a very large shredding line, a compact metal shredder is often a more reasonable investment than a heavy-duty large-capacity system.

Solution

The Q43P-600A provides a cost-effective pre-processing solution for scrap metal recycling. It reduces the size of loose metal waste before baling, melting, sorting, or resale.

Main benefits include:

• Makes bulky scrap easier to store and transport
• Improves feeding efficiency for balers and furnaces
• Reduces manual cutting and handling work
• Helps increase the value of recyclable scrap
• Suitable for small and medium daily processing capacity
• Compact design saves workshop space
• Low-speed shredding reduces noise and blade wear
• Simple structure makes maintenance easier

This machine is especially useful when the customer wants to improve scrap handling efficiency without investing in a large complete shredding line.

Specifications

Application

The Q43P-600A compact metal shredder is suitable for many small and medium recycling applications, including:

• Scrap metal recycling yards
• Aluminum profile recycling workshops
• Metal can recycling stations
• Copper and aluminum scrap collection points
• Sheet metal processing factories
• Small automobile dismantling workshops
• Waste metal pre-processing centers
• Foundries requiring smaller furnace feeding materials

Common materials include:

• Aluminum profiles
• Metal cans
• Thin steel sheets
• Copper scraps
• Light iron scrap
• Stainless steel offcuts
• Small metal components
• Mixed light metal waste

How It Works

The machine uses a low-speed, high-torque shredding principle. After materials are placed into the feeding hopper, the rotating blades pull the scrap into the shredding chamber. The 20 thick blades continuously bite, tear, shear, and crush the material into smaller pieces.

Because the machine runs at 16 rpm, it does not rely on high-speed impact. Instead, it uses strong mechanical torque to process metal scrap more steadily. This helps reduce noise, lower dust generation, protect the blades, and improve machine durability.

After shredding, the material becomes smaller and more uniform, making it easier for the next step such as baling, furnace melting, magnetic separation, manual sorting, or container loading.

How To Choose

When choosing this model, customers can consider the following points:

1. Your Material Type

If your material is mainly aluminum profiles, cans, thin steel sheets, copper scrap, or light metal waste, the Q43P-600A is a practical choice.

2. Your Processing Volume

This machine is suitable for customers who need around 1–2 m³/h processing capacity. If your daily processing volume is much higher, a larger model may be recommended.

3. Your Workshop Space

With a compact overall size of 2160×840×1600 mm, this machine is suitable for workshops with limited space.

4. Your Next Processing Step

If the shredded material will be baled, melted, sorted, or transported, the output size of around 30×30 mm can help improve efficiency.

5. Your Budget

For customers who want to start metal recycling or upgrade from manual cutting, this model offers a lower investment option compared with large shredding lines.

FAQ

1. Is the Q43P-600A suitable for a small recycling plant?

Yes. This model is designed for small and medium recycling businesses. It has compact size, simple operation, and a capacity of 1–2 m³/h.

2. Can it shred aluminum profiles and metal cans?

Yes. The machine is suitable for aluminum profiles, metal cans, thin steel sheets, copper scraps, and other light metal waste.

3. Why is low-speed shredding better for this machine?

Low-speed shredding provides higher torque, lower noise, less dust, and reduced blade wear. It is more suitable for stable scrap metal size reduction.

4. Can the output size be adjusted?

The standard output size is around 30×30 mm. If customers need different output sizes, the blade structure can be customized according to actual material and processing requirements.

5. Can WANSHIDA customize the machine?

Yes. We can customize the voltage, feeding hopper, blade design, output size, conveyor system, and machine layout according to the customer’s scrap type and working site
