High Speed 22kW Industrial Metal Shredder 16rpm For Scrap Metal Size Reduction And Recycling

High Speed 22kW Industrial Metal Shredder 16rpm For Scrap Metal Size Reduction And Recycling

Product Overview

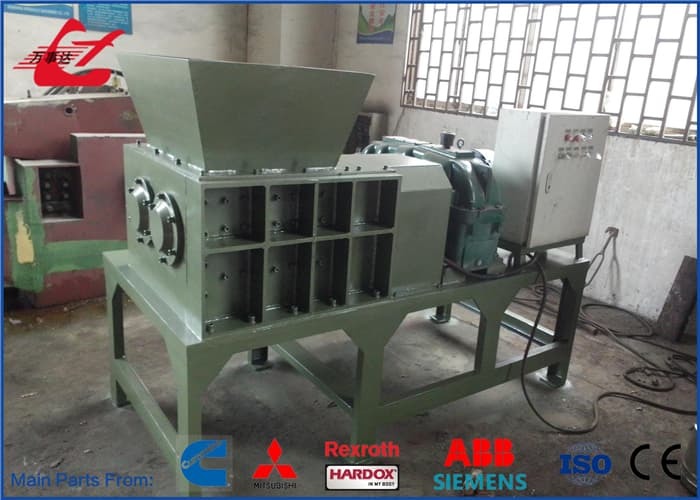

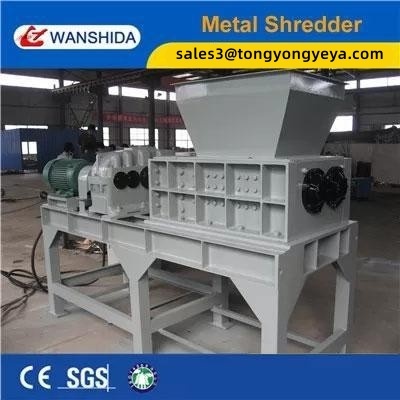

The Q43P-1000A Metal Shredder is a medium-capacity industrial scrap metal shredding machine designed for recycling plants that need higher processing efficiency than small compact shredders, while still requiring a practical and space-saving machine structure. With 33 pieces of 300 mm diameter blades, a 1010×550 mm shredding chamber, and dual 11 kW motors, this model provides stronger feeding ability, wider processing space, and more stable shredding performance for bulky and mixed scrap materials.

This metal shredder is mainly used to reduce the size of aluminum profiles, thin steel sheets, copper scraps, metal cans, stainless steel offcuts, light iron scrap, and other recyclable metal waste. After shredding, the material size can reach approximately 30×40 mm, which is convenient for baling, sorting, melting, storage, and transportation.

Compared with the Q43P-600A model, the Q43P-1000A offers a wider feeding mouth of 1010×720 mm and a larger shredding chamber. This makes it more suitable for customers who process longer scrap pieces, wider metal sheets, or higher daily material volumes. The capacity of 2–3 m³/h helps recycling yards improve workflow efficiency and reduce manual cutting work.

The machine adopts a low-speed 16 rpm shredding principle. Instead of relying on high-speed impact, it uses strong torque to tear, cut, and crush materials steadily. This design helps reduce noise, lower dust, protect the blades, and improve service life. For buyers who care about long-term operating cost, blade durability, and stable production, the Q43P-1000A is a reliable and economical choice.

WANSHIDA can also customize the machine according to the customer’s voltage, material type, required output size, feeding method, and site layout.

Cause

In many recycling yards, loose scrap metal creates several operational problems:

• Long scrap profiles are difficult to feed into balers or furnaces
• Bulky materials occupy large storage space
• Manual cutting requires more labor and increases safety risks
• Mixed metal waste is hard to transport efficiently
• Large pieces reduce furnace feeding efficiency
• Unprocessed scrap lowers overall recycling value

For growing recycling businesses, a small shredder may not be enough. Customers often need a machine with a wider feeding opening, higher capacity, and stronger continuous processing ability.

Solution

The Q43P-1000A provides a practical size-reduction solution for medium-scale metal recycling operations. It helps customers process larger volumes of scrap into more uniform pieces before baling, melting, sorting, or shipping.

Main advantages include:

• Dual 11 kW motors for stronger shredding power
• 33 thick alloy blades for efficient cutting and tearing
• Wider 1010×720 mm feeding mouth for easier material feeding
• 2–3 m³/h capacity for medium recycling plants
• Low-speed high-torque design for stable performance
• Approx. 30×40 mm output size for convenient downstream processing
• Heavy-duty 3000 kg structure for reliable daily operation
• Customizable configuration according to actual scrap type

This machine helps reduce storage pressure, improve loading efficiency, and prepare scrap materials for higher-value recycling.

Specifications

Application

The Q43P-1000A industrial metal shredder is suitable for medium-capacity scrap recycling and metal waste pre-processing applications, including:

• Scrap metal recycling centers
• Aluminum profile recycling plants
• Steel and iron scrap collection yards
• Copper and non-ferrous metal recycling workshops
• Metal can recycling stations
• Automobile dismantling yards
• Sheet metal processing factories
• Foundries and smelting preparation lines

Suitable materials include:

• Aluminum profiles
• Thin steel sheets
• Copper scraps
• Light iron scrap
• Stainless steel offcuts
• Metal cans
• Production waste from metal workshops
• Mixed recyclable metal waste

How It Works

The Q43P-1000A uses a low-speed dual-shaft shredding system. Materials are fed through the 1010×720 mm hopper feeding mouth and enter the 1010×550 mm shredding chamber. The 33 blades rotate at 16 rpm, continuously grabbing, tearing, shearing, and crushing the material.

Because the machine uses low-speed high-torque shredding, it can handle irregular scrap materials more steadily than high-speed crushing equipment. This structure reduces noise and dust while helping protect the blades from unnecessary impact damage.

After shredding, the material becomes smaller and more uniform, with a typical output size of around 30×40 mm. This makes the scrap easier to transport, bale, store, sort, and feed into furnaces.

How To Choose

1. Choose by Material Size

If your scrap materials are longer or wider than small metal offcuts, the Q43P-1000A is more suitable than smaller models because it has a wider feeding mouth and larger shredding chamber.

2. Choose by Capacity

This model is suitable for customers requiring around 2–3 m³/h processing capacity. For larger recycling lines, a bigger shredder or customized system may be recommended.

3. Choose by Downstream Process

If the shredded material will be used for baling, smelting, sorting, or transportation, the 30×40 mm output size can help improve the efficiency of the next processing step.

4. Choose by Power and Working Condition

The dual 11 kW motor configuration provides stronger driving power and is suitable for more continuous operation compared with single-motor compact shredders.

5. Choose by Customization Needs

WANSHIDA can customize voltage, blade structure, hopper design, conveyor feeding, discharge system, and machine layout according to the customer’s factory conditions.

FAQ

1. What is the main difference between Q43P-1000A and smaller metal shredders?

The Q43P-1000A has a wider feeding mouth, larger shredding chamber, 33 blades, dual 11 kW motors, and higher capacity. It is more suitable for medium recycling plants.

2. What materials can this machine process?

It can process aluminum profiles, metal cans, thin steel sheets, copper scraps, stainless steel offcuts, light iron scrap, and mixed recyclable metal waste.

3. What is the final shredded size?

The standard output size is approximately 30×40 mm. Different output sizes can be customized by adjusting blade design and machine configuration.

4. Is this machine suitable before metal baling?

Yes. Shredding bulky scrap before baling can improve feeding efficiency, increase bale compactness, and reduce manual handling.

5. Can the machine voltage be customized?

Yes. Voltage and frequency can be customized according to the customer’s local power supply, such as 220V, 380V, 415V, 440V, 50Hz, or 60Hz.
