Low-Speed Metal Shredder for Uniform Scrap Sizing and Downstream Processing

Product Overview

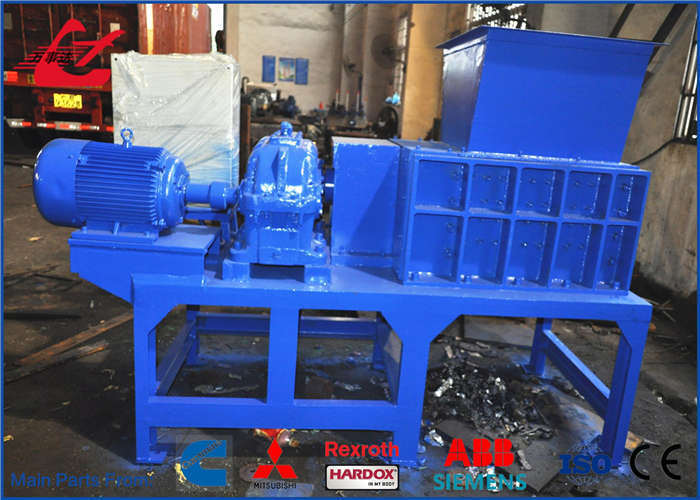

The Q43P-600A Metal Shredder is designed as a material preparation machine for recycling lines that require more consistent scrap sizes before sorting, baling, separation or remelting. Its main purpose is not simply to break metal into smaller pieces, but to transform irregular waste into a more stable and processable recycling feedstock.

The shredder uses 20 blades with a diameter of 300 mm and a thickness of 30 mm. At a controlled speed of 16 rpm, the cutting system continuously grips and shears the incoming scrap. The processed pieces measure approximately 30 × 30 mm, helping reduce large size differences between individual materials.

With a rated capacity of 1–2 m³/h and a 7.5 kW motor, the Q43P-600A is suitable for moderate-volume recycling operations. Its compact 2160 × 840 × 1600 mm structure also makes it easy to integrate with conveyors, sorting equipment and metal balers.

Cause

Mixed scrap often arrives in different shapes and sizes. Long, curved or irregular pieces can become tangled, block conveyor systems and create unstable feeding conditions. This reduces the efficiency of downstream equipment and makes manual sorting more difficult.

Without suitable size reduction, recyclers may experience:

• Inconsistent material flow on conveyors
• Difficulties separating mixed metal scrap
• Uneven loading into baling or melting equipment
• Increased dependence on manual cutting
• Low storage and container utilization
• Frequent interruptions in the recycling line
• Difficulty estimating the volume of processed material

Solution

The Q43P-600A creates a more consistent material flow by reducing scrap to approximately 30 × 30 mm pieces. This controlled output makes the material easier to convey, sort, collect and feed into the next processing stage.

Its low-speed cutting principle provides strong torque while limiting excessive impact. The blades pull the scrap into the 610 × 550 mm shredding chamber, reducing the risk of material bouncing around the feeding area. The 510 × 720 mm hopper opening allows operators to load suitable scrap conveniently.

The machine helps buyers build a more efficient recycling process by providing:

• More uniform material for sorting and separation
• Improved feeding stability for downstream equipment
• Reduced scrap volume before storage or transportation
• Controlled 16 rpm operation with lower noise and dust
• Economical performance from a 7.5 kW motor
• Compact installation for new or existing recycling lines
• Customizable feeding and discharge arrangements

Specifications

Application

The Q43P-600A industrial scrap shredder is suitable for the size reduction and preparation of:

• Light sheet metal scrap
• Aluminum production waste
• Thin steel offcuts
• Metal cans and containers
• Small metal components
• Fabrication workshop scrap
• Suitable mixed recyclable metals

It can be installed before magnetic separators, sorting conveyors, metal balers, storage systems or other downstream recycling equipment.

How It Works

Scrap is placed into the feeding hopper and enters the cutting chamber. The low-speed blades catch the material and pull it between the cutting edges. As the blades continue rotating, the scrap is torn and sheared into smaller pieces.

The processed material falls through the discharge area. It can then be collected in a container or transferred automatically by conveyor. This continuous size-reduction process creates a more stable feedstock for subsequent recycling stages.

How To Choose

Choose the Q43P-600A when the primary goal is to improve scrap uniformity and prepare approximately 1–2 m³/h of material for further processing.

Machine selection should be based on:

• Raw material composition
• Maximum thickness and dimensions
• Material hardness and density
• Required final particle size
• Hourly processing volume
• Feeding frequency
• Downstream processing method

Photos and detailed material information should be reviewed before confirming the model. Hard, thick or oversized scrap may require a more powerful shredder.

FAQ

Why is uniform scrap size important?

More consistent material is easier to transport, sort and feed into downstream equipment. It can reduce blockages and improve the stability of the recycling line.

Can the output go directly into a metal baler?

Yes, provided the shredded material and baler configuration are compatible. A conveyor can also be installed between the two machines.

Is the output always 30 × 30 mm?

The reference output is approximately 30 × 30 mm. The actual size may vary depending on the material properties and cutting configuration.

Is the Q43P-600A suitable for continuous operation?

It can support regular industrial processing, but the recommended operating schedule depends on the material, loading frequency and daily production target.

Can the complete shredding line be customized?

Yes. Feeding conveyors, discharge conveyors, separation equipment and safety protection systems can be configured according to the buyer’s site and recycling process.
