JIANGSU WANSHIDA HYDRAULIC MACHINERY CO., LTD
| Place of Origin: | China |
|---|---|
| Brand Name: | WANSHIDA |
| Certification: | CE, ISO9001 |
| Model Number: | Y83/D |
| Minimum Order Quantity: | 1 set |
| Delivery Time: | 25 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Model：: | Y83-5000 | Motor：: | 30Kw |
|---|---|---|---|
| Capacity：: | 1800kg/h | Weight：: | 14000 (kgs) |
| Maximum Working Pressure: | 25MPa | Theoretical Dry Cicle Time: | 12 Sec. |
| Weight: | 14000 (kgs) | ||
| High Light: | D150mm Hydraulic Sawdust Press,Hydraulic Sawdust Press Reduces Cost,Briquette Making Machine D150mm |
||
| Place of Origin | Jiangsu, China |
| Brand Name | Wanshida |
| Certification | CE, ISO9001 and ISO14000. |
| Model Number | Y83-5000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seaworthy |
| Delivery Time: | 15 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 30 sets/month |
Product Details

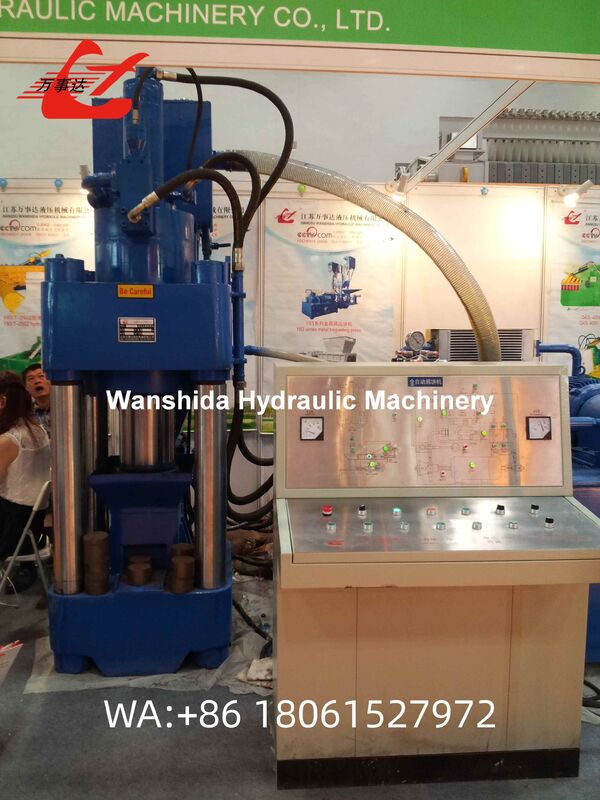

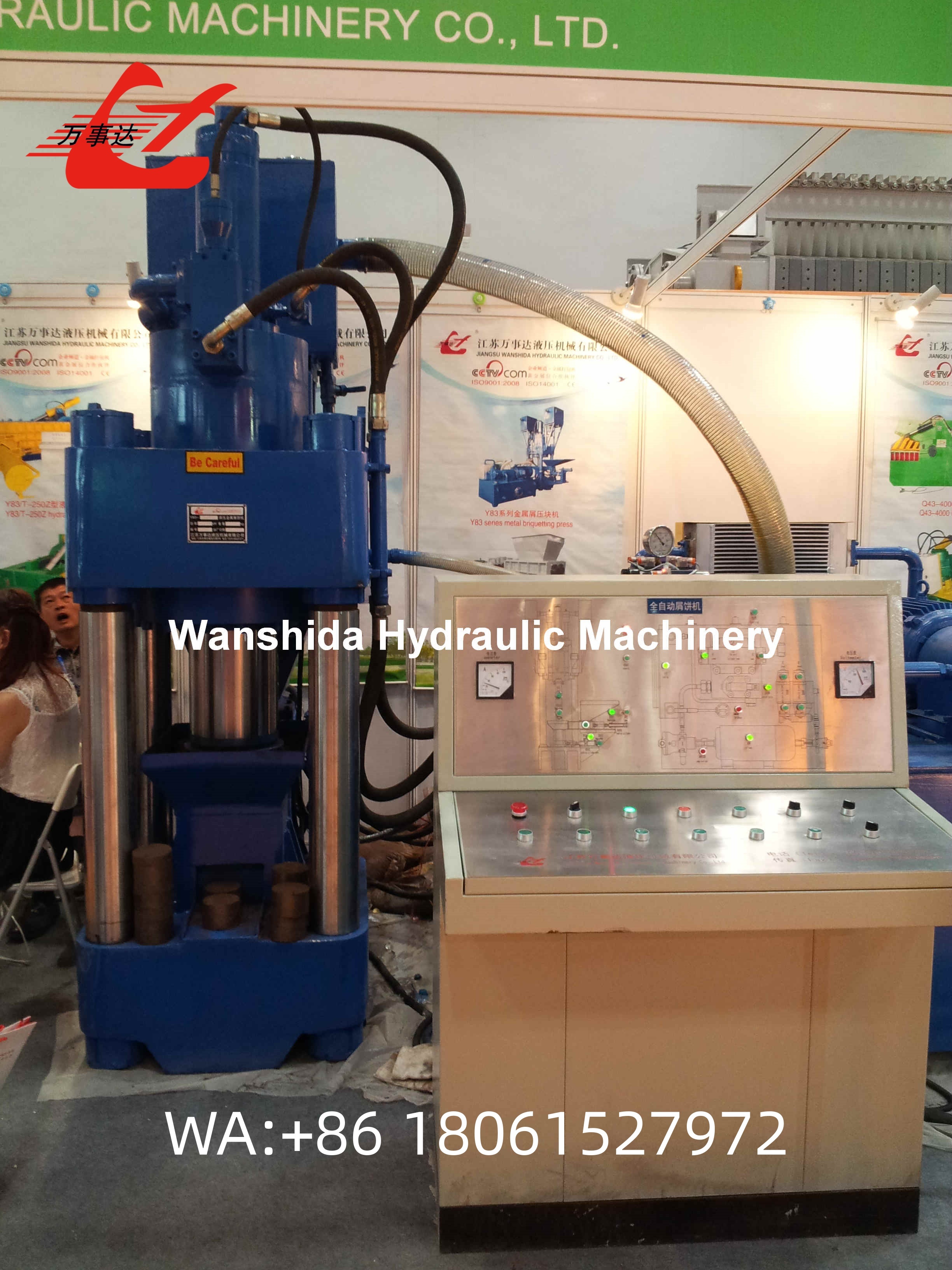

Cast Iron Sawdust Briquetting Press:
Description:
This Y83-5000 Cast Iron Sawdust Briquetting Press is mainly applied in the aluminum alloy section plant, steel casting foundry, aluminum casting factory, copper casting plant, etc. It compresses the waste metal into briquette for melting again instead of the scrap steel, pig iron, aluminum ingot and waste copper. This machine reduces the melting loss of materials, significantly increasing the utilization of waste metal.
The Cast Iron Sawdust Briquetting Press can be operated manually or automatically by PLC. Moreover, the optional feeding system can be mounted to meet the needs of customers. Without heating or adding any additives, this product is able to press various granular or powder cast iron, aluminum, magnesium, titanium, molybdenum and other metal materials into high density cylindrical briquetters, which will not become loose before thrown into the furnace.
Technical Parameters:
|
Model |
Y83-5000 |
|
Cylinder pushing /shearing force |
500 ton |
|
Maximum working pressure |
25MPa |
|
Oil tank capacity |
1800L approx. |
|
Capacity |
1800kg/h |
|
Bale dimensions (LxWxH) |
D150x(60-100)mm |
|
Theoretical dry cicle time |
12 sec. |
|
Motor |
30kW |
|
Operation method |
PLC Automatic Control Button Control Single/Continues |
|
Weight |
14000 (kgs) |
|
Machine dimensions (LxWxH) |
3000x3800x4200mm |
Application :

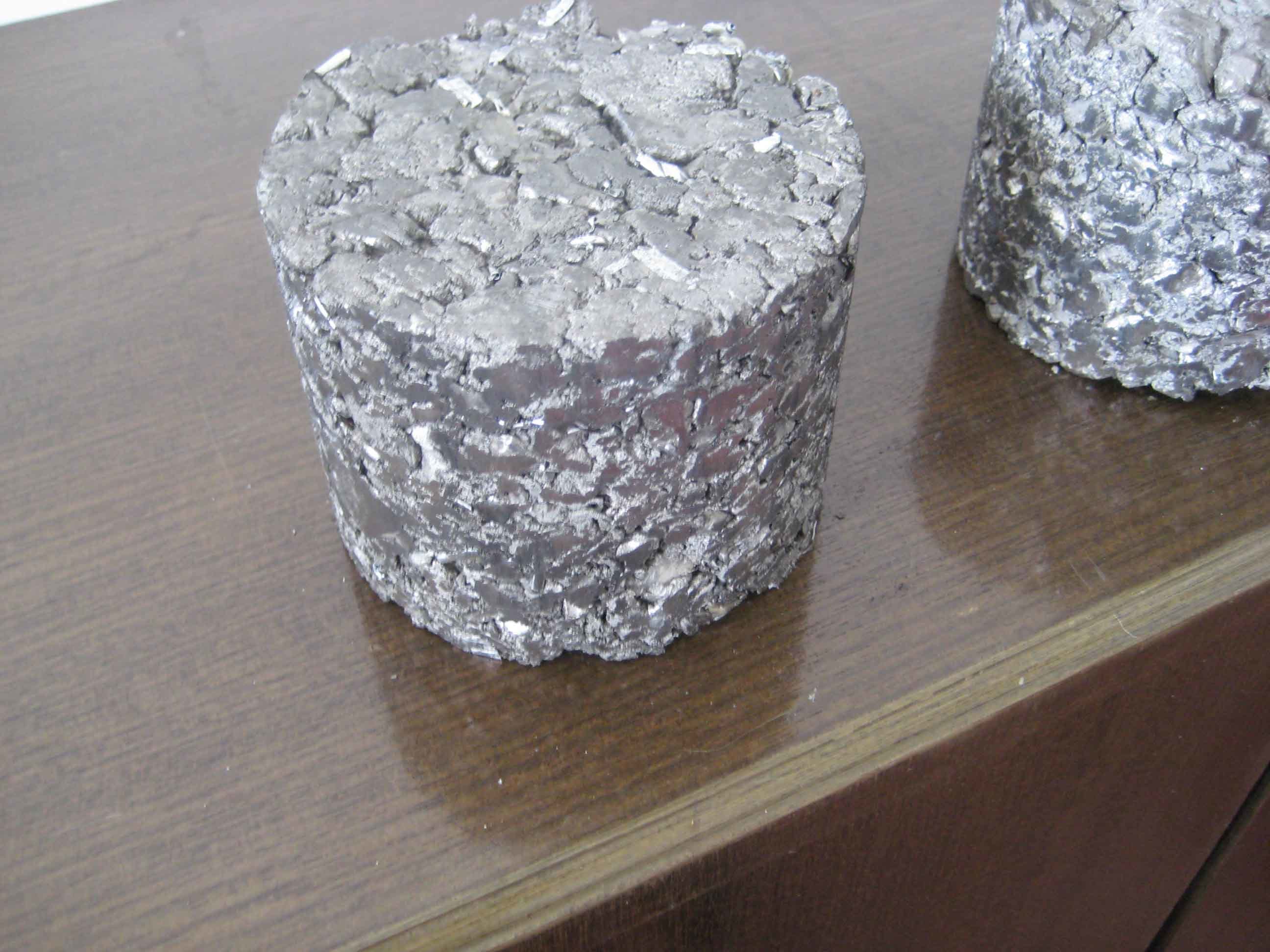

Under the situations that it is not heated or added with additives, the scrap metal briquette press is capable of pressing diversified granular and powdered materials into high density cylindrical briquettes that are hard to become loose. It processes the waste materials like scrap steel, cast iron, pig iron, aluminum ingot, waste copper, magnesium, titanium and molybdenum for secondary fusion instead of using them directly.
Our product makes it easy to recycle, smelt, store and transport the scraps. Moreover, it reduces the cost and melting loss so that the utilization rate of the waste is increased.
This product is commonly seen in the aluminum alloy section plant, steel, aluminum and copper casting plants, etc.
Details:
Structural Style
This scrap metal briquette press varies in vertical and horizontal structure. Therein, the vertical product is equipped with or without feeding cylinder. The diameter of bale can be designed in the designated range according to users' need. If there is no special requirement, the machine that weighs less than 200ton is structured with welded frame. With the weight ranging from 200ton to 315ton.
