Space-saving Flexible Metal Shredder for Small-Batch and Multi-Material Recycling

Product Overview

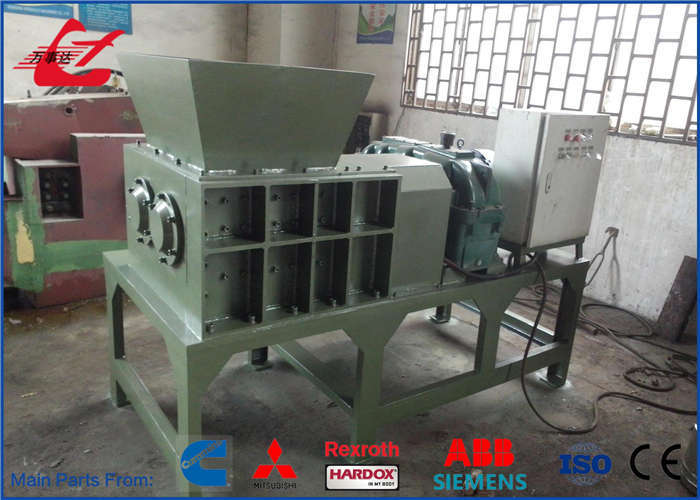

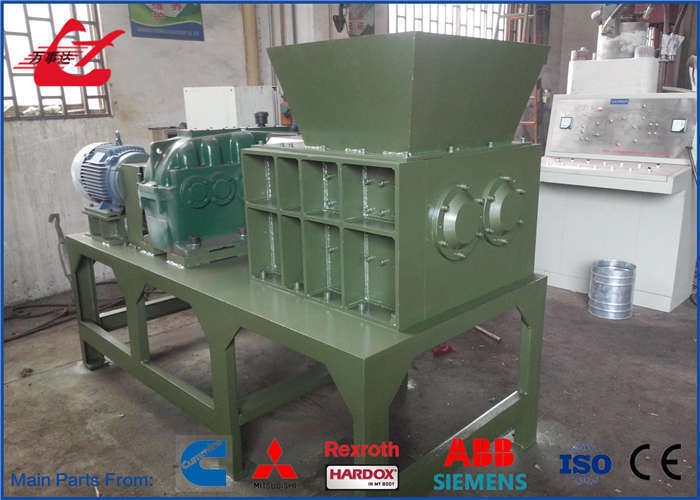

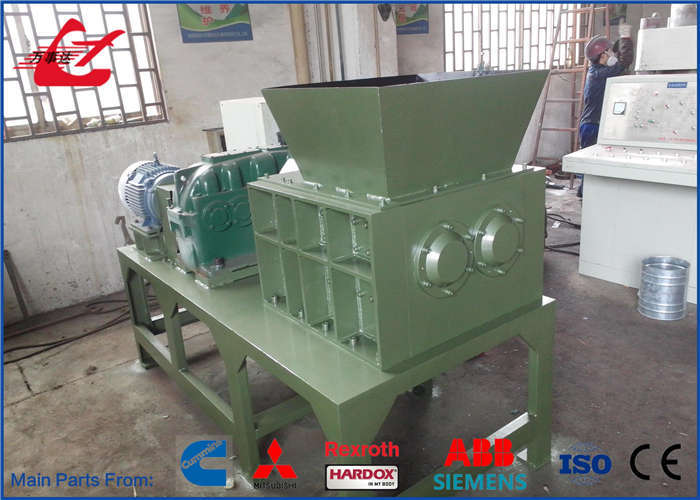

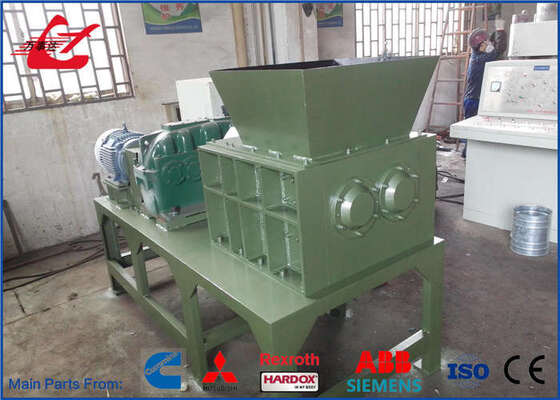

The Q43P-600A Metal Shredder is designed for recycling operations that process several categories of scrap in relatively small batches. Rather than dedicating a large production line to one material, operators can use this compact machine to handle compatible aluminum scrap, light steel waste, metal containers and manufacturing offcuts according to changing daily requirements.

Its cutting unit consists of 20 blades measuring 300 mm in diameter and 30 mm in thickness. The blades rotate at 16 rpm inside a 610 × 550 mm shredding chamber, reducing suitable materials to pieces of approximately 30 × 30 mm.

With a 7.5 kW motor and an estimated capacity of 1–2 m³/h, the Q43P-600A provides an accessible entry point for companies adding metal shredding to an existing recycling business. It can operate as an independent workstation or form part of a line containing feeding, conveying, sorting and collection equipment.

Cause

Not every recycling company handles a continuous flow of one standardized material. Many facilities receive smaller quantities from different suppliers, production departments or collection channels.

Using manual tools for every batch is inefficient, while purchasing a large specialized line may not be commercially justified. Operators therefore need adaptable equipment that can respond to changing workloads without unnecessarily increasing installed power or occupied floor area.

Typical challenges include:

• Several scrap categories arriving in small quantities
• Frequent changes in daily processing requirements
• Insufficient volume for a large dedicated line
• Irregular materials requiring preliminary size reduction
• Limited space for additional recycling equipment
• Difficulty organizing materials for separate processing

Solution

The Q43P-600A creates a flexible shredding station for batch-based operation. Compatible materials can be classified, processed and collected separately, allowing the operator to adapt the production schedule according to incoming scrap and customer orders.

The 510 × 720 mm hopper opening supports the feeding of suitably sized materials without requiring a large loading system. Its 16 rpm operating speed gives the blades time to engage irregular pieces and apply repeated cutting action.

Important advantages include:

• Suitable for planned, small-batch production
• Adaptable to several compatible scrap categories
• Easy integration into an existing workshop
• Modest 7.5 kW installed motor power
• Approximately 30 × 30 mm discharge material
• Convenient connection to optional conveyors
• Suitable for trial-scale recycling projects
• Expandable when future production demand increases

Specifications

Application

The Q43P-600A can support batch processing in scrap yards, manufacturing plants, maintenance centers and material recovery facilities.

Compatible applications may include:

• Aluminum fabrication remnants
• Thin steel production offcuts
• Metal packaging waste
• Rejected light metal parts
• Hardware manufacturing scrap
• Workshop metal leftovers
• Pre-sorted recyclable metals

Material suitability must be confirmed according to its hardness, thickness, construction and maximum feeding dimensions.

How It Works

Before processing, scrap is separated into appropriate material batches. Each batch is loaded through the hopper and guided toward the blade system.

As the blades rotate, they catch and draw the material into the shredding room. Successive cutting actions reduce it into smaller pieces, which fall through the discharge section into a container or onto an optional conveyor.

When changing between different metal categories, the working area can be checked and cleaned to prevent unnecessary mixing.

How To Choose

The Q43P-600A is intended for users whose processing requirement is approximately 1–2 m³/h and whose material range falls within the machine’s cutting capability.

To determine whether this model is appropriate, evaluate:

• Number of materials to be processed
• Volume of each production batch
• Maximum material thickness and hardness
• Largest dimensions before shredding
• Required discharge specification
• Frequency of material changeovers
• Available electrical power
• Plans for future capacity expansion

If one material accounts for most of the production volume, a dedicated configuration can be optimized for that application. A higher-capacity model should be considered when continuous bulk feeding is required.

FAQ

Can the machine process several types of metal?

Yes, provided each material is within the permitted processing range. Material details should be reviewed before the configuration is confirmed.

Is it suitable for batch production?

Yes. Its capacity and compact design make it suitable for processing classified materials in separate batches.

Will different materials contaminate each other?

Residual fragments may remain after a batch. Cleaning the chamber and discharge area between different grades helps minimize material mixing.

Can the system be expanded later?

Yes. Conveyors, collection devices and suitable separation equipment can be added when the processing volume or automation requirement increases.

Is a material test available before ordering?

Material evaluation or trial testing can be arranged based on representative samples, photos, videos and detailed size information.
